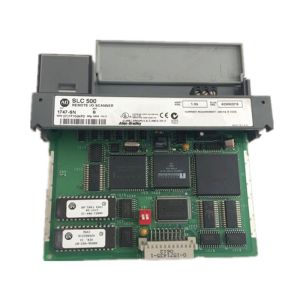

Allen Bradley SLC 500 Universal Remote I/O Scanner Module for SLC 5/02 5/03 5/04 and 5/05 Processors 1747-SN

Liability:

WTL is not liable for any personal injury or property damage resulting from the use of this equipment. It is

buyer's responsibility as to the safe handling & operation of this equipment and to verify equipment is

compliance to their machinery.

WTL Service:
> We offer high quality, fast delivery, competitive price for Allen Bradley Modules.
> Please send your RFQ to get the latest price.
> We will ship the items within 3-5 working days after receive the payment.
> We can ship to you by UPS/DHL//EMS/Fedex. Please contact us and we will use your preferred ways.
> We have a large stock and the prices are variable, sometimes the prices we post are not accurate. If needed, please contact us for specific prices.

SLC Processors

• Use the following tables to select the SLC processor that fits your application.
• Data table maximum words is user configured.
• Maximum timers/counters is restricted only by memory SLC Processors

  The SLC processors offer a wide range of choices in memory, I/O capacity, instruction set, and communication ports to allow you to tailor a control system to your exact application requirements. These products have a strong reliability history covering hundreds of thousands of installations in a broad range of applications.

  SLC 5/01 processors let you configure modular controllers of up to 960 I/O and a 1K- or 4K-instruction memory capacity.
• SLC 5/02 processors let you configure modular controllers of up to 4096 inputs plus 4096 outputs nominally and a 4K-instruction memory. By installing an optional scanner module into one of the 30 I/O module slots, you can add ControlNet I/O, DeviceNet I/O, or Universal Remote I/O to the system. They offer 19 additional instructions, including a message instruction for initiating peer-to peer communication.

  SLC 5/03 processors let you configure modular controllers of up to 4096 inputs plus 4096 outputs and a memory of 8K, 16K, or 32K words. In addition to the features of the SLC 5/02, they have a second built-in communication port—an RS-232-C port that can be configured for ASCII or DF1 protocol, and can be configured for connection to a 1761-NET-AIC converter to provide access to a DH-485 network. SLC 5/03 processors provide bit-instruction execution times of 0.44 ms and an overall system throughput of up to 10 times faster than competitive processors. Additional capabilities include: floating-point math, online programming and run-time editing, flash memory upgrades, built-in key-switch, and a built-in real-time clock and calendar.

  SLC 5/04 and 5/05 processors let you configure modular controllers of up to 4096 inputs plus 4096 outputs and a memory of either 16K, 32K, or 64K words. They have all the features of the SLC 5/03 processors, plus a faster communication port and shorter execution times (bit-instruction execution times of 0.37ms). Instead of a DH-485 port, the SLC 5/04 has a built-in DH+ port for communication with other SLC 5/04 and PLC processors, operator interfaces, and programming terminals. Communication via the DH+ network is three times faster than DH-485 communication. SLC 5/05 processors provide a 10/100BASE-T, 10 or 100 Mbps Ethernet port.
