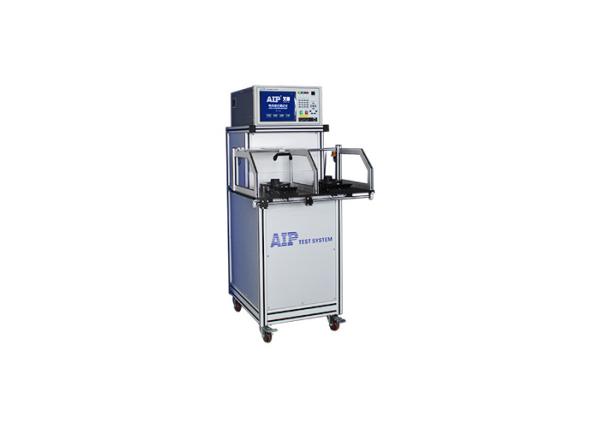

Refrigeration Compressor Motor Stator Winding Testing Machine

Stator Testing Machine For Compressor Motor Stator/Refrigerator/Air Conditioner Compressor Motor

1. Product: Stator testing machine

2. Tested product: compressor motor stator

3. Stator testing machine introduction

This testing machine can be used to test the stator of compressor motor for home appliance. The AC Hipot/high voltage/dielectric strength, insulation resistance, surge/impulse/layer short, winding resistance and direction of rotation can be tested at one-stop.

The testing machine comes with two test stations to ensure the efficiency of the production. All the tests mentioned above takes less than 8 second in total for one stator. Standard equipped with the three color alarm light to indicate the machine status.

4. Technical specification
4.1 Hipot/high voltage/dielectric strength

4.2 Insulation resistance

4.3 Surge

4.4 DC winding resistance

4.5 Direction of rotation

5.Test screen for reference
