Home > Earth-moving Machinery >

Manual Transmission Type Heavy Duty Dump Truck Euro Two 251 - 350hp

Categories Heavy Duty Dump Truck
Brand Name: SINOTRUK HOWO
Model Number: ZZ3317M3267
Certification: ISO9001
Place of Origin: Shandong,China
MOQ: 1 set
Price: Negotiation
Payment Terms: L/C, T/T
Supply Ability: 500sets per month
Delivery Time: 30-45days
Packaging Details: packed in nude
Drive Wheel: 8X4
Horsepower: 251-350hp
Emission standard: Euro 2
Transmission Type: Manual
Engine Capacity: >8L
Color: Optional
Fuel Type: Diesel
Keywords: Dump Truck
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Manual Transmission Type Heavy Duty Dump Truck Euro Two 251 - 350hp

Sinotruk HOWO 8x4 Dump TruckHeavy Duty Euro Two 251 - 350hp

Product Description


SINOTRUK HOWO 8X4 DUMP TRUCK LHD / RHD
ModelZZ3317M3267Driving type: 8x4
CabinHW76 lengthened cab, basic equipment: one sleeper, new-style seat, adjustable safety steering wheel, EURO new type heating & ventilating system; with large size LCD screen, Germany VDO instrument and electric control block, four points floating air suspension(front coil spring, rear air spring) and shock absorbers for highway vehicle, four points floating air spring suspension and shock absorbers for off-highway vehicle; transverse stability installation, double locking safety belt and external sun shade for various mode.
EngineHorse power:266HP(196KW) / 300HP(213KW)
Displacement:9.726 (L) liter
Max torque:1100Nm / 1160Nm at 1100-1600 rpm
Cylinder diameter / stoke:126mm/130mm
WD615.62 / WD615.87 diesel engine, EURO 2 emission standard. 6 cylinder in-line with water cooling, turbo-charging & inter-cooling. 4 stroke direct injection diesel engine. Compression ratio: 17:1. Full load fuel consumption: 193g/kwh; Rated revolution: 2200RPM. Engine net weight: 850KG
Gear boxModel:HW13710 / HW15710
Speed:10drive, 2reverse. Max torque: 1390NM / 1500NM
HW15710 SINOTRUK10 speed manual type transmission, the first shift gear ratio: 14.28, small ratio grade difference and big first shift ratio produce an excellent performance on start up. Gear ratio:1=14.28, 2=10.62, 3=7.87, 4=5.88, 5=4.38, 6=3.27, 7=2.43, 8=1.80, 9=1.34, 10=1, R1=13.91, R2=3.18
Front axle2×HF9, 18 ton axle load, rigid stub axle with double T- cross section and dish brake.
Rear axle

2xAC16 double heavy casting hub reduction drive axle, with supper loading

ability, excellent performance on start-up with heavy load and slope

climbing .Axle load: 2x16 tons.

SteeringZF8098 power steering, hydraulic steering with power assistance.
ClutchSingle-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance.
BrakeService brake: Dual circuit compressed air brake.
Parking brake: Spring energy, storage air-break brake.
Engine brake: Engine exhausted gas brake.
Electric EquipmentOperating voltage:24V negative grounded
Battery voltage:12V/165Ah,cigar lighter
Tire & Rim11.00-20; 12.00-20; 11.00R20; 12.00R20; 295/80R22.5; 315/80R22.5
Overall dimension (mm)9,725 / 9,445 X 2,496 X 3,450 (L X W X H)
Dump Box Dimension (mm)6,500 X 2,300 X 1,200 / 1,400 / 1,500
Total Mass (Kg)31,000
Curb Weight (kg)15130/15360
Maximum Speed (km/h)75
ColorWhite, red, yellow, green, blue

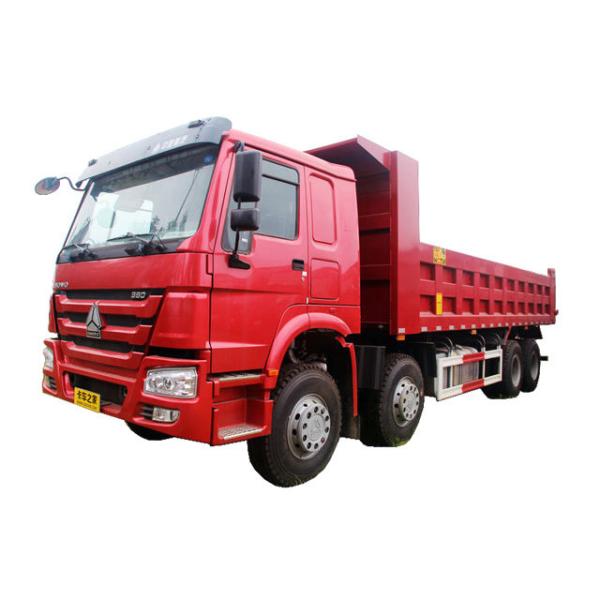

Product pictures



Q&A


Q. How about your product quality?

A: The products have passed the ISO,CCC,SGS,BV, and CONTECNA qualification certification.All our spare parts are from the original manufacturers with original part number and and anti-fake label, the quality is 100% guaranteed.

Q. How about your company's service, especially after-sale service?

A: Jinan Sino Truck Sales Co.,Ltd. have been in this field for many years, our company is constantly improving the service quality to provide excellent service for customers according to the “client first” principle. We always do our best to solve all the problems and put our customer's interests in the first place.

Q: Is there any advantages of your price?

A: Jinan Sino Truck Sales Co.,Ld. is one of the important suppliers of SINOTRUK, which provides guarantees for reasonable price and good quality. Especially, we provide a new service pattern--online assembly service, which aims to produce cars according to customers’ specific requirements.


Production process
