| Categories | Radar Level Transmitter |
|---|---|
| Brand Name: | HCATM |
| Model Number: | GML802-G |
| Certification: | CE、Rohs、ExiaⅡCT6Ga、ExdiaⅡCT6Gb |
| Place of Origin: | Xi'an |
| MOQ: | 1 |
| Price: | $800USD/pieces |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 100000 pieces per month |
| Delivery Time: | 3-5 days |
| Packaging Details: | Packing in cartons or wooden cases |
| Medium: | Liquid,Solid, Particles, Dust |
| Range: | 0~40m |
| Accuracy: | ±3mm |
| Antenna: | 316L,PTFE |
| Temperature: | -40~+260℃ |
| Pressure: | -0.1~2.0MPa |
| Output: | 4~20mA;HART;RS-485 Modbus |
| Power: | 24VDC |
| Process Connection: | Flange |
| Explosion-proof grade: | ExiaⅡCT6Ga/ExdiaⅡCT6Gb |
| Frequency: | 26GHz |
GML802-G Crystallization dew condensation corrosive liquid powder radar level transmitter
Technical Parameters
| Applicable medium | Liquid,Solid, Particles, Dust |
| Range | 0~40m |
| Frequency | 26GHz |
| Antenna | 316L,PTFE |
| Precision | ±3mm |
| Process temperature | -40℃~+260℃ |
| Process pressure | -0.1MPa~2.0MPa |
| Output | 4~20mA/HART/RS-485 Modbus |
| Power supply | 24VDC |
| Process connection | Flange |
| Explosion-proof grade | ExiaIICT6Ga/ExdiaIICT6Gb |

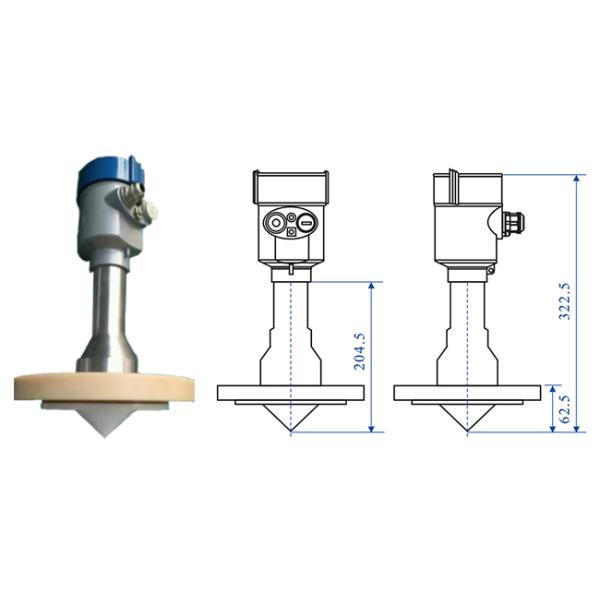

Dimensions

|
