| Categories | Fiber Optic Connectors |
|---|---|
| Place of Origin: | Hubei, China |
| Brand Name: | CY |
| Model Number: | SC quick connector |
| Certification: | ISO9001:2008 |
| Supply Ability: | 100000 Piece/Pieces per Month SC quick connector |
| Packaging Details: | Individual Package or plastic box |
| MOQ: | 1 Piece/Pieces |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Product name: | SC quick connector |
| Application: | FTTH FTTB FTTX Network |
| Color: | Blue Green |
| Fiber Type: | G657A |
| Operating temperature: | 40~+85 |
| Connector: | SC LC FC ST |
| Return Loss: | UPC 55dB |
| Insertion loss: | 0.3dB |
| Brand: | CY |
| Port: | Shanghai port Shenzhen port |

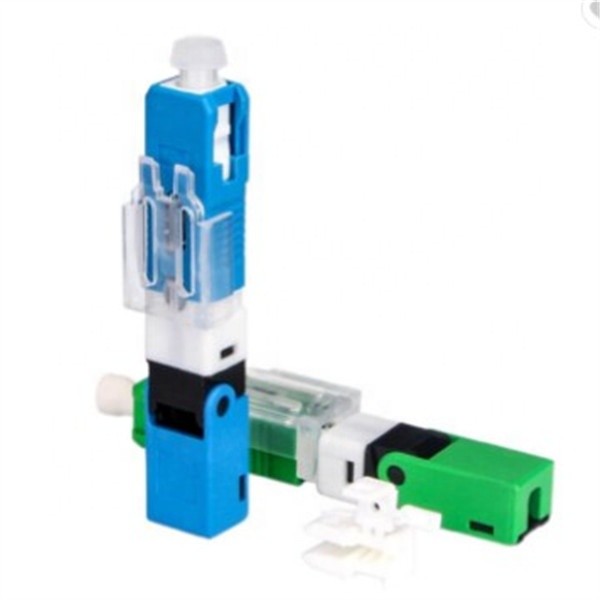

Field Assmbly SC quick connector can proivide a quick and easy of fiber in the field.Options are avaliable for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels.This connector system removes any requirement for epoxy,adhesive or costly curing ovens and polishing and fiber ederface inspection.
2.Features
1.Factory-installed fiber stub
2.No epoxy or polishing required
3.Quick and easy fiber termination in the field 4.Eliminates cable excess length and pigtail splicestorage
4.Eliminates cable excess length and pigtail splicestorage
5.Cost effective 6.Applicable to bow-type drop cable and 2.0/3.0 indoor cable ,telecom cable
3.Specification
| Fast Connector Specification | |||
| Mode | SM | MM | |
| Polish | UPC | APC | PC |
| Insertion Loss | ypical ≤0.2dB Maximum ≤0.3dB | ≤0.25dB | |
| Return Loss | ≥50dB | ≥65dB | ≥35dB |
| Interchangeability | ≤0.2dB | ||
| Repeatability | ≤0.1dB | ||
| Durability | ≤0.2dB (1000 times mating) | ||
| Tensile Strengh | > 10kg | ||
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) | ||
| Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) | ||
Q1: How e warranty for products ?
A: 10 years,and maintance for whole life
Q2: Can we make OEM for products?
A: Yes, we can print your logo or label on the products or on the
box.
Q3: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay
for the shipping cost.
Q4: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our
products were 100% tested before the shipment.
Q5: What is your delivery time ?
A: Generally, sample: 3~5 working days. formal order: 7-10 working
days.
Q6: What's your payment terms ?
A: We accept T/T, Western Union, Money Gram, Paypal.
For samples: 100% payment. Formal order: 30% as deposit, 70%
balance payment before shipment
|
