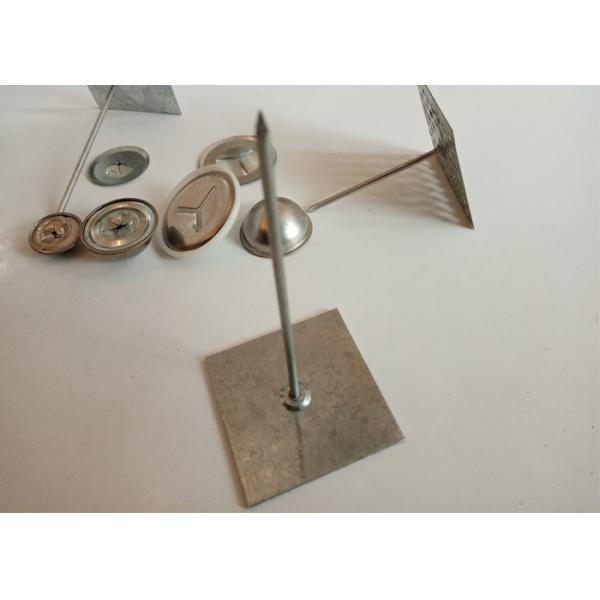

Stainless Steel Self Adhesive Insulation Pins / Self Stick Insulation Hanger Pins

Introduction To Self Stick Insulation Hanger Pins

Self stick insulation pins are made of metal nail, square base and stick taple.

Base material: galvanized steel, stainless steel

Base size: 50*50mm/40*40mm or to be your requirement

Base thickness: 1mm or to be your requirement

Pin material: mild steel or aluminum 1100 grade or stainless steel

Pin diameter: 12ga(2.7mm) /3mm /10ga(3.4mm) or to your requirement

Pin length: 1" to 12"

If you are in need of self stick insulation hanger pins, please feel free to ask me a price or sample,

my email is cherry@huihaomesh.com

Specification of self stick insulation hanger pins

Other size also could be customed.

Technical parameter of self stick insulation hanger pins

Foam density: 182kg/m³

Liner release value: 10 N/m

Peel Adhesion (23℃): 20 N/25mm

Application Temperature: 10℃ - Advisory

Static Shear: >1000 Hrs (PSTC)

Service Temperature (Minimum): -35℃

Service Temperature (Maximum): +90℃

Tensile Strength: (L) 113 N/cm² (CNS10487)(C) 85 N/cm²

Elongation: (L)170% (CNS 10487)(C) 150%

Shelf Life: 2 years (20℃ 65%RH)

Application Of The Self Stick Insulation Hanger Pins

1. Work surfaces should be clean and dry, free of dust.
2. Remove the protective release paper (taking care not to touch the adhesive).
3. Place the hanger in the required position and press the base against the surface to be insulated
4. Insulation can be impaled immediately and firmly locked with fastening clips but maximum strength of adherence is achieved after 24 hours

Package And Delivery

1. insulation pin length less than 65mm, 1000pcs per carton, 64 cartons per pallets.
2. insulation pins length 70mm-120mm, 500pcs per cartons,64 cartons per pallets.
3. insulation pins length 125mm-250mm, 250 pcs per cartons, 64 cartons per pallets.
4. as your requirement

Sample: DHL/EMS/UPS/TNT/EXPRESS
Large Order: we recommand you by SEA ,or by AIR if in an emergency.
