| Categories | FTTH ONT |
|---|---|
| Brand Name: | JiZhong |
| Model Number: | JZOG-3404 |
| Place of Origin: | China |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000pcs per month |
| Delivery Time: | 5 work days |
| Packaging Details: | Standard export package |
| connector type:: | SC/PC |
| PON No.: | 1 |
| Fiber mode: | Single fiber |
| Wavelength: | Transmitting port:1310 +/-20nm, Receiving port:1490 +/-10nm |
| Portocol: | GPON: ITU-T G.984.1/2/3/4; EPON: 802.3-2005 and CTC EPON |
| Optical link length: | Max. 20km |

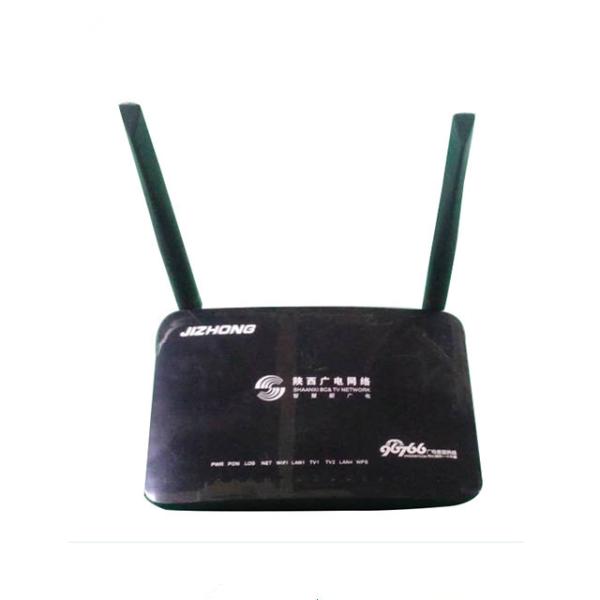

1GE 3FE 1POTS 1USB WIFI Fiber Optical GPON Terminal FTTH ONT For FTTH, FTTB, FTTX Network
Main Functions:
*** G/EPON two mode adaptation;
*** GPON- G.984/ G.983 code; EPON- 802.3-2005/CTC support G.711, G.722, G.729 and T.38 coding and encoding protocol;
*** Supporting VoIP, WiFi bgn or CATV(see detailed model function);
*** Supporting L2/L3 multicast forwarding, L2 bridge forwarding, L3 router forwarding and NAT/NAPT;
*** Supporting flexible traffic classification;
*** Supporting HQoS (Hiberarchy Quality of Service);
Technical index:
| Hardware | |||
| Shell: | Plastic housing | Working Enviornment | Operating temperature: 0 to 50ºC |
| Ports: | 1GE+3FE | Storage temperature: -40 to 85ºC | |
| Weight: | 0.2kg/pc | Operating humidity: 10% to 90%(Non-condensing) | |
| Indicator: | Power/PON/LOS/LAN/WPS/WLAN | Storage humidity: 10% to 90%(Non-condensing) | |
| Port datasheet | |||
| PON Parameter | Wavelength: Tx 1310nm, Rx1490nm | Ethernet | VLAN Tag/UNTAG |
| Tx Optical Power: 0~4dBm | Q in Q VLAN | ||
| Rx Sensitivity: -27dBm | MAC address restricion | ||
| Two direction FEC(Forward Error Correction) | MAC address learning | ||
| authertation: SN/password/LOID(GPON); MAC/Key/LOID(EPON) | WLAN | IEEE802.11b/g/n antenna attenuation:2dBi multi SSID | |
| Optical Fiber: 9/125 single-mode fiber | WPS |
|
