| Categories | Long Range Ultrasonic Sensor |
|---|---|
| Brand Name: | HAOLI |
| Model Number: | HL-125-25 |
| Certification: | CE，ISO9001，ROHS |
| Place of Origin: | ChengDu |
| MOQ: | 500 |
| Price: | Negotiation |
| Payment Terms: | TT |
| Supply Ability: | 1000pcs/10days |
| Delivery Time: | 10work days |
| Frequency: | 125±5KHZ |
| Capacicent: | 1000±20% |
| Dalay Time: | ≤0.5ms |
| Sensitivity: | -60min |
| Directivity: | 7±1° |
| Operating Temperature: | -30℃—+80℃ |

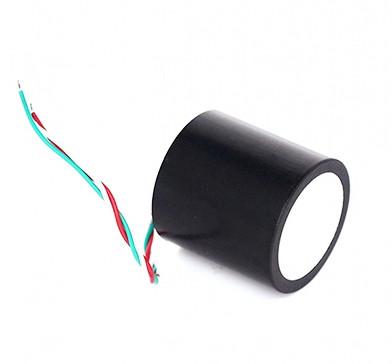

125KHz ultrasonic distance measuring transducer sensor for proximity ultrasonic liquid level sensor, range finder
Product Description
| Center frequency | 125±5KHz |
| Measure range | 0.2-3m |
| Echo Sensitivity | -60dB min |
| Min.Parallel Resistance | 300Ω±30% |
| Capacitance | 1000±20%pF |
| Directivity deg | 14°±2°(-6dB) |
| Max.Input Voltage | 800Vp-p |
| Protection Class | IP65 |
| Min.Parallel Resistance | 250±50Ω |
| Mechanical quality factor(Qm) | min.40 |
| Operating Temperature | -20-+80℃ |
| Storage Temperature | -35-+85℃ |
Housing Material | ABS |
| Dimension (diameter * height ) | φ25×25mm |
