1. Cabinet Overview

This series telecom cabinets can be configured to meet specific requirements with a range of options also available including cable management, thermal management, environmental protection and integration. provides superior protection for telecom and communication equipment from the ravages of changing weather, temperature, moisture and other hazards.

2. Cabinet Features

• External dimensions: WxDxH 600x1000x2055mm.

• There is 42U 19” rack inside of the cabinet.

• Material is cold rolled steel with 1.5mm thick.

• Outdoor polyester light grey RAL7035 coating or custom made.

• One front door, one back door,hidden zinc alloy hinge.

• Outdoor special steel lock, lock cylinder assembled with protective cover, lock body assembled with three-point lock device.

• Door stopper / wind lock is installed on the inside of the cabinet door.

• Grooved door with seal rubber strip, attached to the inner side of the door, waterproof and dustproof.

• The air inlet and air outlet are all installed with a filter, and the filter can be cleaned and replaced.

• Include standard 19“ rack inside the cabinet, high universality. Special rack or electrical lining board inside the cabinet can be custom made.

• Cable inlets at the bottom of cabinet

• IP65 Protection Rating: This cabinets protects against rain ,dust, splashing water and damage from external

• Surface Finish: Power Coated

• Lamp:LED Lighting

• Mounting type: wall mount, floor mount, pole mount

• Cooling system: Air conditioner cooled

3. Cabinet Application

• Satellite Communication

• Wireless Backhaul

• Cable Television

• Navigation & Positioning

• Military Installation

• Port Security

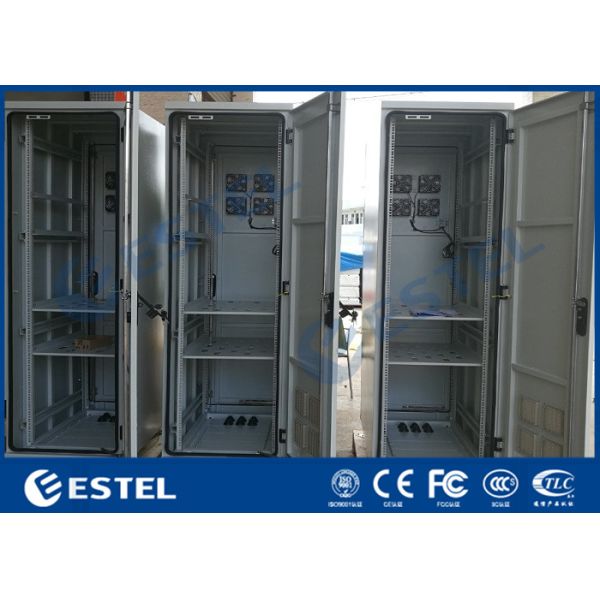

4.Cabinet Pictures

Introduction

Tianjin Estel Electronic Science and Technology Co., Ltd (ESTEL(GUANGDONG)TECHNOLOGY CO., LTD), located in China, is a professional supplier of integrated outdoor telecom cabinet and temperature control solutions for outdoor telecom base station. As a science and technology innovative company, we engage in the R&D, manufacture, and sales of telecommunication equipment. Estel has a well-established team of technical and management experts who can meet customers’ specific needs accurately.

The base station integrated solutions and products include outdoor integrated telecom equipment cabinet, battery cabinet, RRU cabinet, power supply cabinet, environment monitoring system, TEC peltier air conditioner, AC220V compressor air conditioner, DC48V variable frequency air conditioner, heat exchanger, rectifier, UPS, embedded telecom power system etc. All the above solutions and products can be custom made.

Our products and solutions have been deployed all over China. Our main domestic customers are China Telecom, China Mobile, China Unicom, State Grid, Shenzhen / Beijing Metro and Huawei / ZTE etc. In addition, our products have been exported to Europe, North America, South America, Central America, Southeast Asia, Africa, Australia, Mid East countries, etc.

“ Customers First, Quality First ” is always our principle. We have attained many certifications, such as ISO9001, ISO14001, OHSAS18001, CE, UL, FCC etc. AS a telecom integrated solutions / energy saving system integrator in China, We have strong advantages in technology competitiveness, management competitiveness ,service competitiveness and price competitiveness. Through many years of experiences in design, production and implementation of different projects around the world, we have gained great reputation. Relying on professional technique and strict quality control, we will continuously offer high cost-effective products and solutions to our respectable customers globally. We will always try our best to meet customers’ need and requirement.
