Automatic Servo Press Machine / Computer Control Drop Test Chamber

Categories Servo Press Machine
Brand Name: Mentek
Model Number: MTK-KX40
Certification: CE
Place of Origin: China
MOQ: 1 Unit
Price: Negotiable
Payment Terms: T/T, L/C
Supply Ability: 30 sets per month
Delivery Time: 25-35 working days after order confirmed
Packaging Details: First protected by resin fiber and PP film, then put into Strong wooden case
Product name: Drop test chamber
Max. Test Force: 5KN,10KN, 20KN, 50 KN, 100KN
Test Force Range: 0.4%~100%FS (full Scale)
Test Force Indication Error: With ±0.5% Of Indicated Value
Effective Test Width: 400mm
Voltage: 220V/50Hz, ±10%
Controller: Computer control
Usage: Drop testing
Electronic: AC220V-50HZ/380V-50HZ
Meet Test Standard: IEC, ASTM, MIL, ISO Etc
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Automatic Servo Press Machine / Computer Control Drop Test Chamber

Mentek Drop test chamber/Automatic Servo Driven Press/Material Universal Testing Machine

Product Description

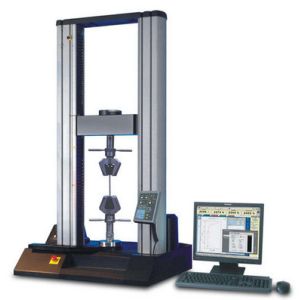

MTK-S Series Universal Material Testing Machine is mainly used for tensile, compression, bend and other mechanical tests, analysis and study of metal and non-metal materials. It can automatically obtain such parameters as ReH, ReL, Rp0.2, Fm, Rt0.5, Rt0.6, Rt0.65, Rt0.7, Rm and E and conduct test and provide data according to GB, ISO, DIN, ASTM, JIS and other international standards.

Product Parameter

Product namecomputerized servo-driven universal material testing machine
Max. test force5KN 10KN 20KN 50 KN 100KN
AccuracyClass 0.3
Load parametersTest force range0.4%~100%FS (full scale)
Test force indication errorWith ±0.5% of indicated value
Test force resolutionwith the full scale not graded and the resolution remaining constant in the full scale
Displacement parametersDisplacement indication errorWithin ±0.2% of indicated value
Displacement resolution0.015μm
Speed range0.001~200mm/min
Speed control accuracyWithin ±0.2% of set value
Main frame parametersOverall dimensions95×60×210cm
Effective stroke (without fixture)800mm
Effective test width400mm
Power supply220V/50Hz, ±10%
Power3KW
Weight500KG
Product details


CE

Related Products


FAQ

FAQ

Q: Is your company a trading company or factory?

A: Factory, we have has 6 years focusing on test instruments field, 6 years

exporting experience.

Q: After an order is placed, when to deliver?

A: The products delivered to you within 7 days for our stock items from clearance of payment. It will take 25-to-35 working days for custom made products or equipments that are not available from stock. we produce products by ourselves including make a blueprint,purchase materials,cut materials until Packing and shipping, So we can control the delivery date to some extent

Q: What’s the payment term?

A: T/T,L/C and other payment terms could be negotiated.

Q: What's the warranty and after-sales service?

A: Three-year warranty period and free training of operators and maintenance personnel for customers (located in our company or customer location). We have a complete maintenance service team and provide the most prompt and professional maintenance services (12HR maintenance reply,24HR to the factory, problem elimination).

Q: What the standards do you adopt?

A: We have been adopting the world standards and regulation such as GB,ISO,BS,ASTM,UL,JIS,CE and so on.

Q: What about the product' services and quality?

A: Each instrument must be 100% inspected and tested on shipment and delivery.Product use training. Each of our products provides video training to show you how to install and operate.When you need, we can arrange engineers to provide equipment operation training to the customer's company

Q: Why choose us?

A: 1. Experienced, professional production test equipment technology.

2. From drawing, buying materials, cutting, to assembling and packing, we do it all by ourselves,.So we can make machines according to customers' needs and even control the delivery date to some extent.

3. High quality after-sales service, free training for customers operators, we have a professional after-sales team, we provide the most professional and timely after-sales service
