| Categories | Stadium LED Display |
|---|---|
| Brand Name: | SCXK |
| Model Number: | P8 |
| Certification: | CBCE/ROHS/FCC/ISO/UL |
| Place of Origin: | CHINA |
| MOQ: | 13 sqm |
| Price: | negotiation |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5600 sqm month |
| Delivery Time: | 7-15 working days |
| Packaging Details: | flight case, wooden case, carton, it is up to you. |
| Pixel density/pixels/m²: | 15625/m² |
| Module size/mm: | 256x128 |
| Scanning mode: | (1/4) |
| Refresh frequency: | >3840Hz |

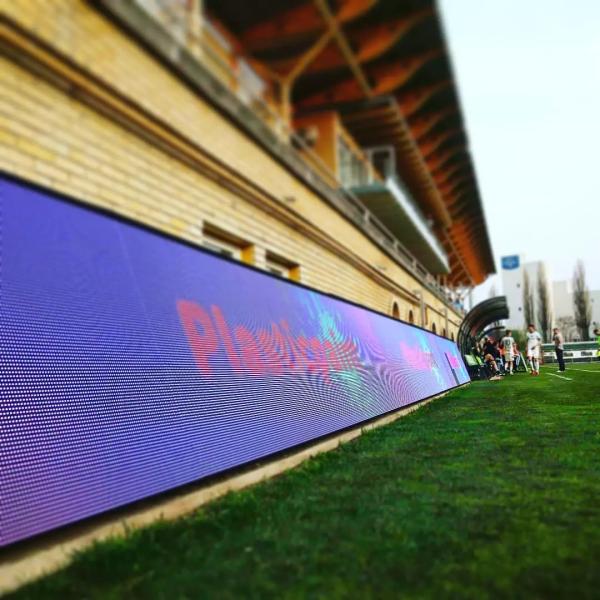

| Installation Site: | Football Stadium |
| Color: | Full color |
| Resolution: | 32x16dots |
| Density:: | 10000dots/sqm |
| Brightness:: | 7000cd |
| led chip: | Nationstar |
| control system: | Nova ，huidu，colorlight，linsn |
| warranty: | 5years |
| Company Info. |
| Shenzhen ShiXin Display Technology Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
♦ Perfect Brightness and Chromaticity Calibration
Perfect calibration between brightness and chromaticity delivers
best picture quality at every place. The brightness difference is
set to less than 2%, and chromaticity difference is less than
0.005. You may also adjust the brightness and chromaticity as per
your choice.
♦ Get Every Detail in Picture
We spend some time with every detail of the product, so that you
can enjoy every detail of your marketing pictures. The
pixel-perfect pictures are a treat to watch. It means, you will not
miss any detail in the picture, video or text displayed on the
screen.
♦ Product specification
| outdoor SMD P8 | ||||||||||||||
| Resolution/mm | 8 | |||||||||||||
| Pixel configuration | 1R1G1B | |||||||||||||
| Pixel density/pixels/m² | 15625/m² | |||||||||||||
| Module resolution | 32x16 | |||||||||||||
| Module size/mm | 256x128 | |||||||||||||
| View distance | 7-400m | |||||||||||||
| Single point brightness adjust | Can be added | |||||||||||||
| Single point color adjust | Can be added | |||||||||||||
| White balance brightness | >8000cd/㎡ | |||||||||||||
| Color temperature | 6500K-9500K | |||||||||||||
| Horizontal view angle | 120(degrees) | |||||||||||||
| Vertical view angle | 60(degrees) | |||||||||||||
| Signal Process bit | 10 or 16bit | |||||||||||||
| Grey process | 1024x1024x1024 16834x16834x16834 65536x65536x65536 | |||||||||||||
| Control distances | Internet cable:100m, multimembrane:500m, monofilm:2km | |||||||||||||
| Driving mode | Constant driving current | |||||||||||||
| Scanning mode | (1/4) | |||||||||||||
| Frame rate | 60Hz | |||||||||||||
| Refresh frequency | >3000Hz | |||||||||||||
| Control mode | Computer synchronous | |||||||||||||
| Brightness adjusted range | Manual, automatic operation, stepless continuous adjusted 255 steps. No grey loss | |||||||||||||
| Out of control point | <1/10000 | |||||||||||||
| Working hours | ≥72hours | |||||||||||||
| Mean Time Between Failure | >5000hours | |||||||||||||
| Life time | 100000hours | |||||||||||||
| Life-all-white(brightness halving) | 50000hours | |||||||||||||
| Environment temperature range | Operating temperature range: -20-45℃ | |||||||||||||
| Maximum power:/㎡ | <950W | |||||||||||||
| Average power:/㎡ | <350W | |||||||||||||
| Self-check technology | LED spot self-check, communications check, power check, temperature monitor(need customization) | |||||||||||||
| Remote monitoring | Remote supervision and control, record potential fault, send out warning signs to the operators.(need customization) | |||||||||||||
| Software environment | WindowsNT,Windows1999,WindowsXP | |||||||||||||
| Luminous point width between centres | Deviation<3% | |||||||||||||
| Brightness uniformity | <10% | |||||||||||||
| Color uniformity(chromaticity coordinate) | ±0.003 | |||||||||||||
| Power supply request | AC85-264V(50Hz-60Hz) | |||||||||||||
| Contrast | (1000:1) | |||||||||||||
| System protection | Moistureproof,dustproof,high temperature protection,anti-corrosion,anti-burning,anti-static,anti-vibration | |||||||||||||
| Humidity(working) | working:10-95% | |||||||||||||
| Humidity(storing) | storing:10-95% | |||||||||||||
♦ Production process:
1) Incoming Inspection→2) SMD→3) Plug-in
→4) Wave Soldering→5) After Welding→6) Testing
→7) Semi Finished Aging→8) Module Assembly
→9) Gluing→10) Finished Aging→11) Detection Finishing Warehousing
♦ Packaging and shipping
Wooden case or flight case package are available.
Shipping by sea,air or DHL,multiple shipping ways for your choice.
FAQ
Q1: Why choose us?
A1.1: Company Info: Signic has been in LED industry with more than 10 years expericence,
our sales marketing areas cover a lot of countries in America,Europe,East and other area,which
are more than 90 countries regions.
A1.2: R&D Team: Signic has the professional R&D team, and launch new products according
to the customers' needs every year or even each quarter.
A1.3: Manufacturing: Signic has strict QC control and manufacturing management process,
which enable our products high quality and stable working performance.
A1.4: Service: Signic has have specialized technicians before and after sales. And strong
marketing team to offer youthe solutions 10/24 anytime.
Q2: What’s the warranty of your LED Display?
A2: We offer 2 years warranty for our different LED Display Screen series, 100,000 hours life span
for the LED Lamps,and life time technology support with 10/24 service if you have any question with
LED Screen.
Q3: What’s your payment term? How long takes to delivery?
A3: We accept payment online through Alibaba, or offline to our company account by T/T bank,
PayPal, and other payment options for your convenience.
Usually, 30% deposit in advance, and 70% balance be paid before delivery.
The average lead time is 20days.
|
