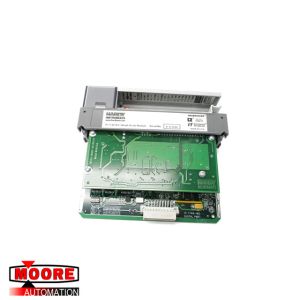

1746-WS HARDY Weigh Scale Module Self Contained Microprocessor Based IO Module

1746-WS HARDY Weigh Scale Module self-contained microprocessor-based I/O module

Product Details

The HI 1746-WS Weigh Scale Module is a self-contained microprocessor-based I/O module with control inputs and outputs. The HI 1746-WS is designed to be easily plugged into the back plane of an AB SLC 5/02, 5/03, 5/04 or 5/05 programmable controller. The HI 1746-WS supports a wide variety of process weighing applications such as batching/blending, filling/dispensing, check weighing, force measurement, level by weight and weight rate monitoring.

The module can control two (2) relays via two (2) TTL level outputs and transmits data via the backplane to the SLC. A 20 bit A-D converter with 980,000 counts of display resolution gives the instrument the ability to tolerate large “dead” loads, oversizing of load cells/sensors and to provide accurate weight measurement and control.

To calibrate the module, simply push the front panel “Button” to effect a C2 calibration (electronic), or you can implement a C2,“Hard” (traditional with test weights) or “Soft (manual load cell data) through the processor.

Specifications

Power

Provided from the SLC 500 rack: +5Vdc

1,000 dc minimum isolation from backplane logic circuitry

Backplane Current: < 0.2 Amps with four 350 ohm or 1,000 ohm load sensors

Inputs

Signal: -0.5mV through +16.5 mV

Sense: ±5Vdc ±5%

C2 Second Generation Calibration data

INTEGRATED TECHNICIAN (IT), mv, mV/V weight, rsistance in ohms, excitation current

Outputs

Excitation 5Vdc ±5% 1.15w max

INTEGRATED TECHNICIAN (IT) reference control

Common Mode Rejection 100dB at or below 60 Hz

Resolution: 20-bit A/D resolution (985,000 counts of displayed resolution over -0.5 to +16mV range)

Conversion Rate: 20 updates per second

Setpoints Output: Two independent TTL level drive signals

Location

Single slot (local or remote rack)

SLC 502, 503, 504, 505

Vibration Frequency Rejection: 0.25 Hz and above in 5 selectable steps

WAVERSAVER

Weight: 1.1 lb (0.5 kg)

About HARDY

Hardy delivers high performance weighing solutions with the LOWEST TOTAL COST to own. We include Industry Leading Technology in all of our scales and instruments to make it EASY for you to install, integrate, and maintain. Powerful solutions that are easy to use is why our customers realize increased production efficiency.

Hardy helps manufacturers and processors by providing process measurement solutions that reduce waste, increase productivity and improve quality, often by up to 50% over prior systems. Our customers find Hardy’s people and solutions easy to work with and reliable, while delivering an exceptional return on investment.
