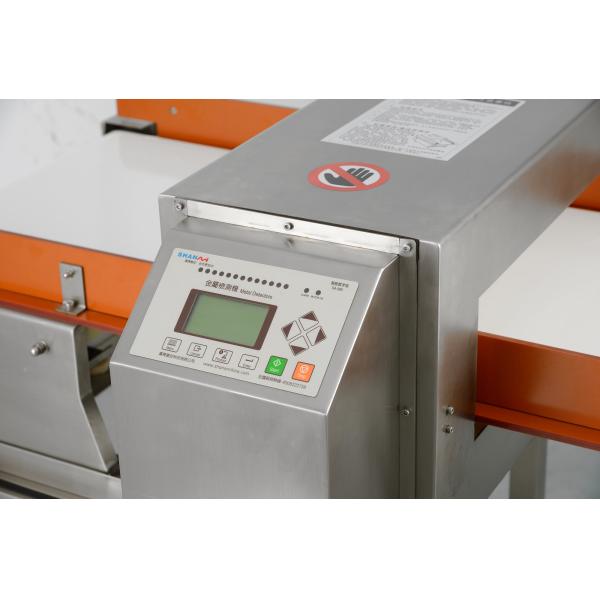

IP69 Waterproof Belt Conveyor Metal Detection For Seafood

Categories Conveyor Belt Metal Detector
Brand Name: SHANAN
Model Number: SA-980-4010
Certification: CE ROHS,Metal Detector meet CE/ ISO
Place of Origin: CHINA
MOQ: 1 set
Price: negotiation
Payment Terms: T/T
Supply Ability: 100 set/month
Delivery Time: 15work days
Packaging Details: Box
Name: Conveyor Belt Metal Detector
Type: Conveyor Belt
Detection width: 300mm/400mm/500mm,Customized
Detection height: 80mm/120mm/150mm/180mm/200mm/250mm,10-50cm Customized
Detection sensitivity: 1.5-5.0 Stainless steel,0.6mm-3.0mm iron ball
Alarm mode: The buzzer alarm,the motor automatically stop,Belt auto stop as standard,rejector as optional
Power supply: 50/60Hz,220V±10%
Weight: 150-200kg
Power: 110v/60hz? 220v/50hz
Voltage: 110-220V
Warranty: 1 year
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

IP69 Waterproof Belt Conveyor Metal Detection For Seafood


Quicker to Clean


All parts are IP69, designed to be accessible for quick and easy cleaning with no drying time needed, production can recommence immediately to free up cleaning resources for other tasks and increasing the overall production capacity.


Better Food Safety


The equipment is more hygienic to avoid bacterial contamination of the food, preventing a factory food safety risk, protecting the brand, satisfying COP and Food Safety Standards, and overall providing bacterial prevention reassurance.


Improved Reliability


Designed to full IP69 rating, the specification is less susceptible to water ingress damage, protecting it against corrosion, keeping the machine operating at all times, and so reducing breakdown costs and the associated down-time costs. SA- is the ideal solution in high-care factories to ensure reliability, longevity and reduced overall ROI.


Application


Wildly applicable in most of industry like food processing, chemical, pharmaceuticals, cosmetics, toy, etc.


Parameter


No.PartSA-4009SA-4012SA-4015SA-4017SA-4020
1Size of Effective Width(mm)400400400400400
2Size of Effective Height(mm)90120150170200
3Width of PU Belt (mm)380380380380380
4

Body length (mm)

(Without rejector)

15001500150015001500
5Belt height, above ground (mm)800±50800±50800±50800±50800±50
6Belt speed(m/min.)3232323232

7

Sensitivity (Air test of center) (mm)

FE:0.8

NFE:1.0

SUS304:1.2

FE:1.0

NFE:1.2

SUS304:1.5

FE:1.0

NFE:1.5

SUS304:1.8

FE:1.2

NFE:1.5

SUS304:2.0

FE:1.2

NFE:1.5

SUS304:2.0

8Maximum Weights to drive (KG)2525252525
9Sorting/Rejecting device

Belt Stop with audible and visual alarm

(Down belt,Flipper,Pusher optional)

10PowerAC 220V±10% 50Hz(60Hz)

Note: The sensitivity above is only based on the Test Sample. The actual sensitivity would be affected by the product being inspected and working environment.
