12-150 t Polyester Screen Printing Mesh For Electronic Version , Display Screen

Categories	Polyester Screen Printing Mesh
Brand Name:	BJPFM
Model Number:	PFM - bolting cloth
Certification:	SGS
Place of Origin:	China
MOQ:	1 Meter
Price:	$ 0.7 - $1.2 / Meters
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	1000000 Meter/Meters per Month
Delivery Time:	7-15 work days
Packaging Details:	1. roll with paper tube in plastic bag; 2. package belt strengthen; 3. 2-10 rolls in per carton; 4. waterproof bags outside carton.
Other name:	100% Polyester Screen Printing Mesh,Silk Screen Printing Materials
Material:	100% polyester monofilament
Weave Type:	Plain
Mesh/inch:	15-420Mesh
Width:	max width 3.9M
Length:	25 -1000m/roll
Color:	White ,Yellow,Black
Thread Dia.:	31micron - 400 micron
Aperture:	31 micron -1300micron
Sample:	Within 2 M free

Contact Now

Add to Cart

Company Info.

Beijing PFM Screen Co., Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

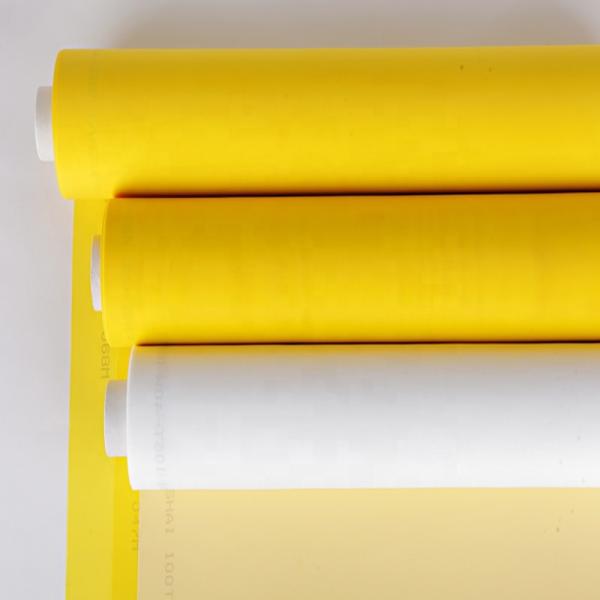

12-150 t Polyester Screen Printing Mesh For Electronic Version , Display Screen

12-150T Polyester Silk Screen Printing Mesh For Electronic Version, Display Screen

1. Screen Printing Mesh Description

Polyester mesh is many superiorities of ink transparency,ink briliance, various decorative pattern choice are offered by screen printing,and the most important is the fast production cycle time and unaffected disc performance.

Product Name	12-150T Polyester Silk Screen Printing Mesh
Material	100% polyester monofilament
Mesh Count/cm	6T-165T
Mesh Count/inch	15-420 mesh/inch
Color	White & Yellow
Width	127cm, 165cm or customized
Roll length	30-100m or customized
Thread diameter	30-550 micron
Mesh Opening	25-2000 micron
Thickness	60-1100micron
Weave type	Plain weave
Feature	High tension, low elongation and halogen-free
Usage	Printing on Ceramics, Glass, Textile, Electronics, CD, PCB, Solar cell panel, Advertising
Sample	1 m

2. Screen Printing Mesh Features

1. Low elongation
2. High tensile strength
3.With heat resistance, high temperature resistance, wear resistance and so on.

4. High Yield Point-No loss of elasticity due to deformation under extremely high tension.

3. Screen Printing Mesh Specification

Polyester Printing Mesh(Silk Screen) For T-shirt Printing
Model	Mesh/cm	Mesh/inch	Aperture (μm)	Thread Dia. (μm)	Open Area (%)	Thickness (μm)	Theoretical Ink (cm3/m2)
12-140	12	30	686	140	68	277	189
13-150	13	33	619	150	64	300	128
16-140	16	40	461	140	58	238	139
21-80	21	55	296	80	69	120	79
21-150	21	55	326	150	46	260	118
22-80	22	56	356	80	66	136	90
24-80	24	60	320	80	63	136	86
24-100	24	60	316	100	57	170	65
28-140	28	70	217	140	40	195	76
32-55	32	80	257	55	67	103	67
32-64	32	80	248	64	63	95	56
32-100	32	80	212	100	46	170	73
36-90	36	92	183	90	44	150	65
39-55	39	100	177	55	56	88	55
43-80	43	110	149	80	41	130	53
47-55	47	120	152	55	51	88	48
48-70	48	122	133	70	41	115	47
53-55	53	135	133	55	50	86	42
54-64	54	137	115	64	39	100	39
54-70	54	137	109	70	35	116	40
61-64	61	155	90	64	31	101	30
64-55	64	160	98	55	38	98	36
64-64	64	160	85	64	30	115	34
68-55	68	175	85	55	34	85	28
68-64	68	175	78	64	28	105	30
72-48	72	182	90	48
