| Categories | Food Sorting Machine |
|---|---|
| Brand Name: | BANGHAO |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | 1set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 3,000 sets per year |
| Delivery Time: | 15 days after we receive your deposit |
| Packaging Details: | Wooden Boxes, Vacuum Aluminum Packing |
| Product name: | Chute Color Sorting Machine |
| Accuracy: | more than 99.99% |
| After-sales service provided: | Engineers available to service machinery overseas,Free spare parts,Online support,Overseas service center available,Video technical support |
| Voltage: | 220V 50HZ,220v/50hz,220v/110v,380V,24V |
| Warranty: | 1 Year |
| Sorting accuracy: | ≥99.9 |

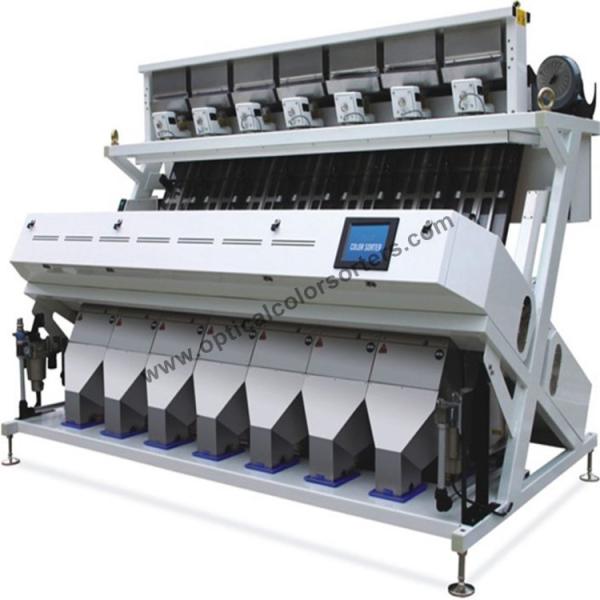

Channel Optical Color Sorter
Channel Optical Color Sorter Features
1. The introduction of LED air cooling.
2. The unique suction ventilation system.
3. Full-color high-definition CCD camera image acquisition system.
4. Intelligent operating platform, easy to operate, easy to master, the real man-machine dialogue, intelligent docking, sit back and relax.
5. International high-end full-color line scan technology.
Technology Data
| Model | RCSK2 | RCSK3 | RCSK4 | RCSK5 | RCSK6 | RCSK7 |
| Output(t/h) | 2-5 | 4-7.5 | 6-10 | 7-12.5 | 8-13 | 10-15 |
| Carryover (bad:good) | >8:1 | >8:1 | >8:1 | >8:1 | >8:1 | >8:1 |
| Accuary(%) | >99% | >99% | >99% | >99% | >99% | >99% |
| Power(V/Hz) | 220/50 | 220/50 | 220/50 | 220/50 | 220/50 | 220/50 |
| Power(Kw) | 0.8-1.5 | 1-2.0 | 1-3.0 | 1.5-3.5 | 1.5-4.0 | 2-4.5 |
| Air pressure(Mpa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Consumption(L/min) | ＜960 | ＜1440 | ＜1920 | ＜2400 | ＜2880 | ＜3360 |
| Weight(Kg) | 500 | 700 | 850 | 950 | 1100 | 1400 |
| Dimensions(mm) | 1250*1607*1953 | 1875*1607*1953 | 1920*1607*1953 | 2260*1607*1953 | 2596*1607*1953 | 2934*1607*1953 |
Recommended Applications
* Rice
* Wheat
* Peanuts
* Seeds
* Grains
* Beans and Pulses
Example of Sorting
|
