| Categories | Electric Scissor Lift |
|---|---|
| Brand Name: | Jesh |
| Model Number: | SS1312HL |
| Certification: | CE,ISO,IPAF |
| Place of Origin: | China |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | L/C, D/P, T/T, Western Union, D/A |
| Supply Ability: | 1500pcs per month |
| Delivery Time: | 15 days |
| Packaging Details: | standard factory package |
| Lift drive / actuation: | electric ,hydraulic |
| Platform extendable: | 0.9m |
| platform width: | 1.15m |
| Max.drive speed: | 3.5km/h |
| Max.Working height: | 14.8m |
| Max.Platform height: | 12.8m |
| Platform capacity: | 320kg |
| capacity on extension: | 120kg |
| battery: | 24v/225ah |
| Engine: | optional for your choose : perkins, Kohler,Deutz,Commins,Yanmar |
| OEM,ODM: | available |

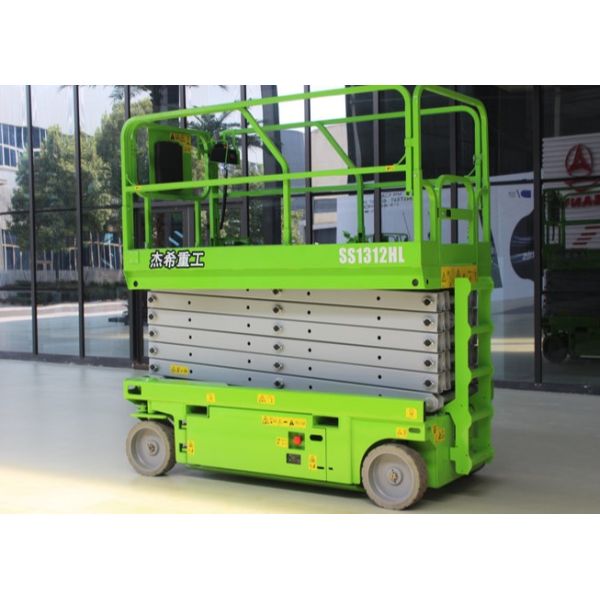

Electric scissor lift with 13m platform EWP factory CE certification
Product Specification:
Mainly used to installing, repairing and cleaning high aerial
equipment,power equipment, overhead pipeline and so on.
It is an ideal equipment for guaranteeing working safe,improving
working efficiency and making aerial working more convenient.
Technical Parameters
| Model | SS1312HL |
| Dimentions | Length 2.49m × Width 1.15m × Height 2.61m ( Height up to 12.8m) |
| Working Height | 14.8m |
| Platform Height | 12.8m |
| Platform Length | 2.36m |
| Platform Length-Extended | 3.26m |
| Platform Extendable | 0.9m |
| Platform Width | 1.15m |
| Height -Unfolded | 2.35m |
| Height-rails folded | 2.08m |
| Wheelbase | 1.93m |
| Min. Ground Clearance-stowed | 10cm |
| Min. Ground Clearance-Raised | 2cm |
| Productivity | |
| Platform capacity | 320kg |
| Extension platform capacity | 120kg |
| Drive Speed | 3.5km/h |
| Gradeability | 25% |
| Raise/Lower Speed | 59/45sec |
| Turning Radius(Inside/outside) | 0/2.17m |
| Tire | 40.5x12.7cm |
| Power | Electric Hydraulic |
| Engine | Optional(Perkins,Kohler,Deutz,Commins,Yanmar) |
| Hydraulic Oil Tank Capacity | 25L |
| Machine Total Weight | 3061kg |
| Battery | 24V/260Ah |
|
