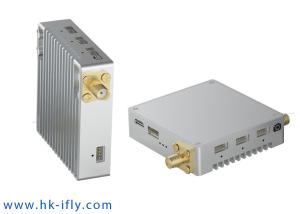

800Mhz/1.4Ghz UHF drone wireless onboard pc tcpip/udp data transmitter

800Mhz/1.4Ghz UHF drone wireless onboard pc tcpip/udp data transmitter

FNM-8416 is a low-cost defence-grade data and video downlink that provide a lightweight, robust, and affordable solution for professional and critical platforms. A UHF frequency channel 800Mhz and 1.4Ghz are available for long-range applications.

FNM-8416 transceivers implement innovative synchronisation algorithms specifically designed to keep communication performance under high dynamics. This results in the unique broadband solution in the market that shows no signal degradation after take-off.

Uplink QNSK, downlink QNSK and TDMA multiplexing allow point-to-point, point-to-multipoint, and mesh networks with configurable time slots, data relay, and dynamic routing capabilities. Based on a proprietary channel access scheme, any network topology can be implemented without the need for external timing sources.

Multiple devices can be connected simultaneously to the FNM-8416 Ethernet and serial interfaces, centralising data links for Pixhawk, Telemetry, Audio, and Video in a single device.

Main Features:

* Phased array wireless data-link
* IP based
* Ad hoc network
* AES-256 link encryption embedded in hardware
* High bandwidth
* Long range
* Field proven
* Radio and antennas integrated in the product
* Easy to install and operate
* For mobile platforms
– Aircrafts
– Vessels
– Vehicles
– Command Post

Wireless HD Link for UAV Professionals, 1080p at 60fps, 3300' Transmission Range

Specification

About us:

IFLY Bi-Directional Data Links are wireless communication units specifically designed for long range links for various types of unmanned aerial and ground vehicles. It support 5km/10km/20-30km/30-50km/70-120km range. It mostly application is for mapping, emergency, detect and Sea Rescue.

By employing leading wireless technologies, the IFLY family of products delivers long-range communication that supports Bi-directional Data and enables real-time full HD Video Streaming.

IFLY stands out from other UAV communication systems in that it combines control, telemetry and payload into one RF channel and in a compact and lightweight solution.

With AES encryption mechanism, built-in flexibility to optimize to customer needs and robust link that operates in long-ranges and overcomes dead spots, IFLY UAV data link provides safe link for drone communication in government, army and commercial applications.

Why IFLY?

IFLY provides H.264/H.265 ,CODEC RTL IP Cores,
CODEC FPGA Boards, and CODEC FPGA Modules for hardware video systems.

IFLY maintains technique co-operation relationship with some world well-known enterprises, such as Sony ,Panasonnic and Huawei.
IFLY UAV radio links provides comprehensive progress in the video transmission application technology, develop high-standard product solutions and perfect customer service system.

1. Bi-directional and configurable software defined radio (SDR) data link

2. 5km-120km Line-of-Sight (LOS) range

3. ISM Frequency 1.2G/1.3G.1.4G/2.3G/2.4G/2.5Ghz for your option

4. Encrypted & Secured

5. Control, monitoring, telemetry and real-time Full HD rvideo

6. Compatible with Pixhawk fly controller

7. Compact & Lightweight Solution

8. Support Video Input HDMI and IP

9. Latency 15-30ms
