Custom Design Compact Knuckle Boom Crane With one Year Warranty

Custom Design Compact Knuckle Boom Crane With one Year Warranty

End User Advantages

1. Compact design with minimum height, width and length
2. Small footprint, for easy installation onboard
3. Delivered as one complete unit ready for installation to vessels
4. Easy access for periodic maintenance, service and repair, support by with clear labelling and detailed manuals

Pedestal

Each crane is supplied with a pedestal which should be welded onto the ship’s steel structure or counter foundation. The pedestal consists of a steel pipe and a flange on which the crane housing with its slewing ring is placed.
The pedestal has been provided with a man hole and hatch cover for easy access of the electric connections. The diameter of the pedestal will be determined for each individual project since this diameter depends on the maximum workload and maximum outreach of the crane. As a standard the pedestal is delivered with a total height of 1000 mm.
Upon request alternative pedestal dimensions are possible against additional cost.

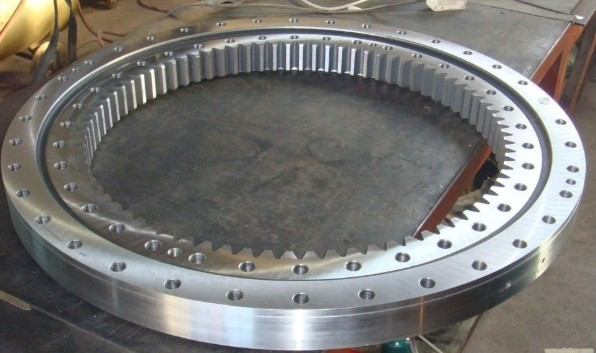

Slewing ring

The KB cranes are all delivered with a high quality slewing ring. This slewing ring is mounted in between the crane housing and pedestal by means of high strength structural bolts and nuts which are tightened to a certain torque. The exact torque will be specified by OUCO and can be found on the general arrangement drawing of the crane.

Crane housing
The crane housing or tower forms the main steel structure of the crane. It has been built up from special grade steel plates to a stiff rigid superstructure, incorporating the brackets to support the crane’s jib and hydraulic cylinder(s).
The bearings to support the crane’s jib are so-called self lubricating plain bushings. The bearings for the hydraulic cylinders are of the spherical type
The crane housing also contains the hydraulic oil tank accessible by hatches. It also contains all
necessary provisions for fastening of the slewing drives and hydraulic components. The bottom of the
crane housing consists of a flange to which the slewing ring is connected.

FAQ

Q:1. What's the information should I provide when inquiry?
A: More details or drawings, better.
A: Lift capacity B: span C: lift height D: power sourceor other specials you give us will be more appreciated.
Q:2. How many operating methods for my selection?
A: Standard operating methods:
A: pendent controller with push buttons .B: remote control with push buttons
C: cabin(space capsule seat) control with joystick. Choose any type as you like.
Q:3. Can this type work in hazardous environment?
A: Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q:4. Can you provide the serious lifting tools?
A: Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, etc as your requirement!
Q:5. How can we install the crane?
A: Our senior engineer can be your side to do the installation guide service and training.
Q:6. Safety device
A: Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.

OUCO Industry, was established in February 1984, covers an area of 48,000 square meters, construction area is 35,000 square meters.

OUCO headquartered in the crane hometown of Jiangsu Province, where representing most advanced machinery manufacturing level in China.
