| Categories | FTTH Device |
|---|---|
| Brand Name: | JZ |
| Model Number: | TWH-6118 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10000pcs per month |
| Delivery Time: | 5 work days |
| Packaging Details: | Standard Export Package |
| Type of light source (NM): | 1625nm |
| Type of fiber: | 9/125 um SM fiber |
| Type of connector: | FC/PC |
| Type of tester: | InGaAs |
| Pulse width: | Automatic |
| Max test distance (KM): | Reflect accident 6.5（≥1.0dB） |
| Dimension(mm): | 200x90x50mm |

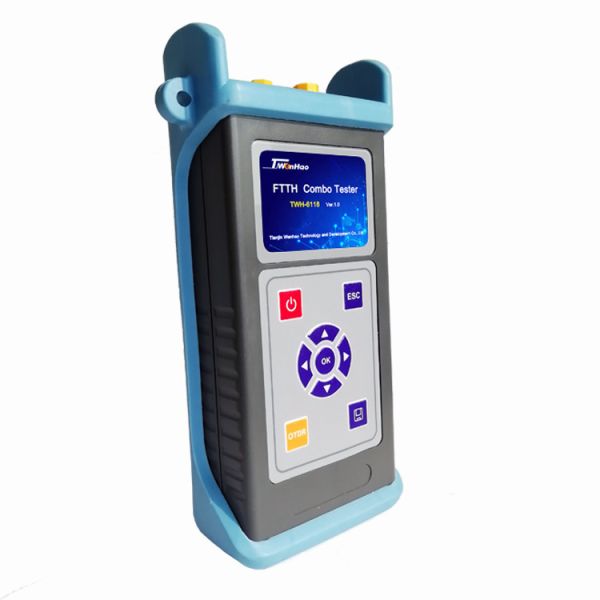

FTTH Combo Tester
TWH-6118
Key Features:
* Quick accurate test: Troubleshooting such as loss, break point and reflection. Quick positioning and value display
* Break point test over whole line (0-50KM customization)
*Automatic voltage control and regulating pulse width
*Suitable for any test under kinds of environments
Technical Parameters:
| ITEM | TWH-6118 | |
| Type of light source (NM) | 1625 | |
| Type of fiber | 9/125 um SM fiber | |
| Type of connector | FC/PC | |
| Type of tester | InGaAs | |
| Pulse width | Automatic | |
| Max test distance (KM) | Reflect accident | 6.5(≥1.0dB) |
| Non-reflect accident | 6.5(≥1.5dB) | |
| Dead zone of reflect accident(M) | 3 | |
| Accuracy (reflect accident) (M) | ± (2+2*10 (-4) *distance) | |
| Optical power meter | ||
| Calibration wavelength(nm) | 850, 1300, 1310, 1490, 1550, 1625 | |
| Power test range (dBm) | -70~+6 | -50~+26 |
| Data storage | 1000 groups (USB data output) | |
| Red light source | ||
| Red light source power(mW) | ≥1 | |
| Battery | 3 x1.5V AA Rechargeable | |
| Working temp. (℃) | -5~40 | |
| Shelf temp. (℃) | -10~60 | |
| Dimension(mm) | 200x90x50 | |
| Weight (g, excluding battery) | 320 | |
| ||
|
