| Categories | Rice Paddy Dryer |
|---|---|
| Brand Name: | NEWBELT |
| Model Number: | 5HM-15 |
| Certification: | ISO900/CE |
| Place of Origin: | CHINA |
| MOQ: | 1 |
| Price: | negotiation |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200sets/month |
| Delivery Time: | 10 days after we receive your deposit |
| Packaging Details: | wooden box |

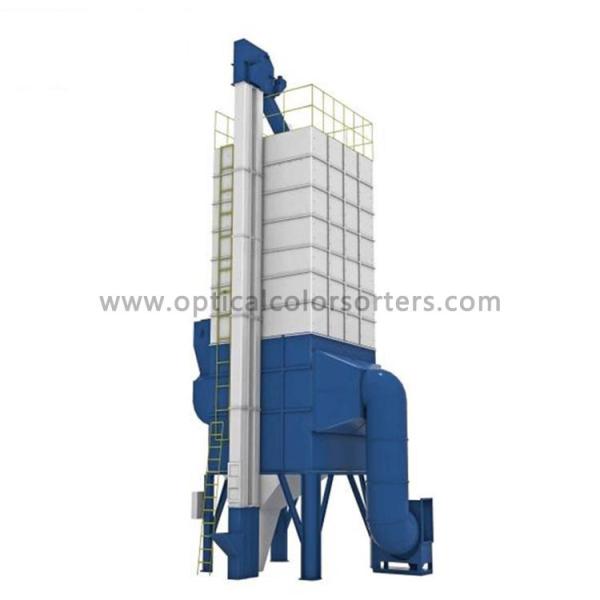

| Product name: | Circulating Continuous Flow 15 Ton Paddy Grain Dryer 15 Ton Rice Paddy Dryer |
| Model: | 5HM-15 |
| capacity(kg): | 15 Tons |
| Dimension L*W*H (mm): | 4320×2492×10370 |
| Net Weight: | 4,200kg |
| Heat Source: | Biomass Furnace/Gas Burner/Diesel Burner |
| Power Consumption (kw): | 10.6 |
10.6kw Circulating Continuous Flow 15T Paddy Grain Dryer TECHNICAL PARAMETERS
| Product Description | ||||||
| Model | 5HPX-15 | 5HPX-20 | 5HPX-30 | 5HPX-30B | 5HPX-35 | |
| Loading capacity(kg) | Paddy | 3,000~15,000 | 3,000~20,000 | 4,000~30,000 | 4,000~30,000 | 5,000~35,000 |
| Corn | 3,800~18,500 | 3,800~24,600 | 5,000~36,400 | 5,000~36,400 | 6,000~42,000 | |
| Dimension L*W*H (mm) | 4321*2583*10000 | 4600*3263*10500 | 4600*3260*12700 | 4600*3570*12700 | 5712*5000*12400 | |
| Net Weight | 3,000 | 4,200 | 5,500 | 6,500 | 8,000 | |
| Heat Source | Biomass Furnace/Gas Burner/Diesel Burner | |||||
| Power Consumption (kw) | 9.95 | 10.6 | 15.45 | 21.7 | 19.7 | |
| Input Voltage | 3 Phase 220V/380V,50Hz | |||||
| Husk Furnace | Type | Indirect | ||||
| Ignition | Manual | |||||
| Function | Loading | 50~60(approx) | 50~60(approx) | 60~70(approx) | 60~70(approx) | 60~70(approx) |
| Discharge | 50~60(approx) | 50~60(approx) | 60~70(approx) | 60~70(approx) | 60~70(approx) | |
| Drying Rate | 0.5-1.2 %/h | 0.5-1.2 %/h | 0.6-1.2 %/h | 0.6-1.4 %/h | 0.5-1.2 %/h | |
| Standard Devices | Online moisture meter, Conveyor ,Discharge system, Buffer system, Elevator ,Suction fan, Temperature sensor | |||||
| Safety Devices | Overload device, Temperature control device, Control fuse, Leakage protection device, Air pressure switch | |||||
Furnace Burner Options
| Furnace Type | Yes/No |
| Diesel | Yes |
| Gas | Yes |
| Coal | Yes |
| Biomass Material | Yes(Husk/Wood/Straw/Etc) |
1)Whole turnkey project solution
included Pre-cleaning machine,elevator,input&outlet
pipe,furnace and dryer
2)Plant designition service
supply you all the possibly area required,the instllation diagram
for consideration
3)Instllation and commisioning service
professional engineer woud guide you for the assembling and
commisioning the machine
4)Full time online service
24 hours online technique service,ensure to tackle the problem
immediately
5)Enormous spare parts to support
easy broken spares and wearing parts would be send timely,no worry
for drying season
Applicantion:
|
