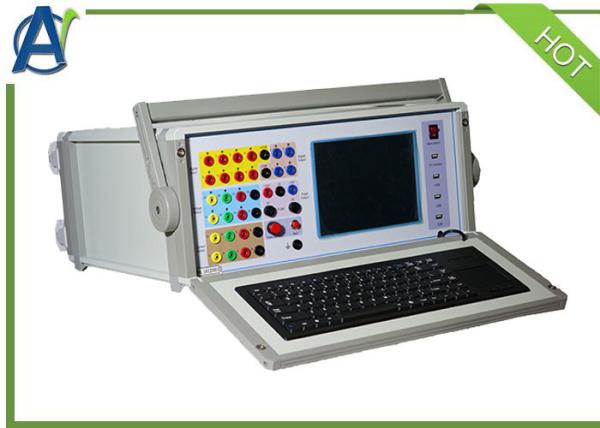

Multi-functional Six Phase Relay Tester for Relay Relays Testing

Introduction:

• Six Phase Relay Tester has standard 6 phase voltage and 6 phase current output, voltage 125V/phase, current 30A/phase, 6 phases in parallel can up to 180A.
• The tester adopts digital Signal Processor Microcomputer, so it can not only test the traditional relays and protectors, but also can test the modern micro computer relays, specially for transformer differential protection and transfer equipment testing.
• Classic Windows XP operating interface, 8.4 inch resolution of 800*600 TFT true color display.
• Six Phase Relay Tester is equipped with ultra-thin industrial keyboard and optical mouse, complete a variety of operations using keyboard or mouse the same as ordinary PC.
• The main control board is DSP + FPGA architecture, 16 bit DAC output, generates high - density sine wave 2000 points each circle to fundamental wave, which greatly improve the wave quality and the accuracy of the test instrument.
• Using high-fidelity linear amplifier. Both to ensure the accuracy of a low current, but also guarantee the stability of the high current.
• USB directly connect with PC, without any adapter cable, easy to use.
• Can be connected to a laptop computer (optional). Laptop computers and industrial machines use the same software, no need to re-learn the methods of operation.
• Six Phase Relay Tester has a separate DC auxiliary voltage source, output voltage 110V(1A),220V(0.6A), provides relays or protective devices which require DC power.
• The software with self calibrating function, which avoid to calibrate accuracy by adjusting relays after open the case, greatly improve the stability of the accuracy.

Specifications:

RPT-6 Six Phase Relay Tester:
