| Categories | Indoor Fiber Optic Cable |
|---|---|
| Brand Name: | DAWNERGY |
| Model Number: | GJFXZY-6G.652D |
| Certification: | CE/TELCORDIA |
| Place of Origin: | CHINA |
| MOQ: | 100KM |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 10,000KM PER DAY |
| Delivery Time: | 10-20 work days |
| Packaging Details: | Wooden DRUM |
| Product: | Indoor/outdoor duct optical cable |
| Outer Sheath: | LSZH, Yellow, anti-UV |
| Application: | Indoor/outdoor duct |
| No. of fiber per tube: | 6 |
| Company Info. |
| Dawnergy Technologies(Shanghai) Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Indoor/outdoor duct optical cable 6 fibers G652D GJFXZY-6G.652D
| Identification | GJFXZY-6G.652D | ||
| Application | Indoor/outdoor duct optical cable | ||

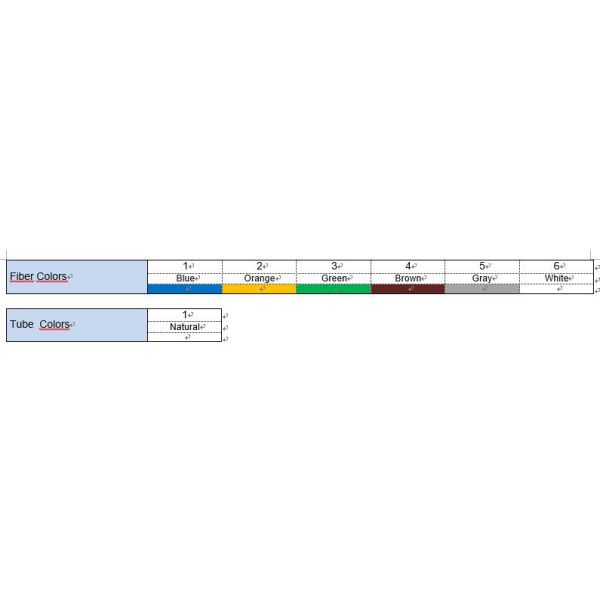

| Configuration |
| ||
| Temperature Range | Storage and transport -20 to +60°C | Installation -20 to +60°C | Operation -20 to +60°C |
| Standards | IEC 60793-1, IEC 60793-2, IEC 60794-3-10 | ||
| Specification No. | GL20200825323 | ||
| Customer Reference | Common standard | ||
| Number of fibers | 6 | |
| Loose tubes x fibers | 1x6 | |
| Loose tubes/Dummies | 1/0 | |
| Outer diameter | mm | 6.0±0.5 |
| Weight | kg | 45±15% |
Note: sheath thickness not consider ripcord portion, sizes and values without tolerances are nominal values
| Max. tensile load | Short term: 600N;long term:200N | ||
| Crush resistance / 10 cm | Short term:1000 N;long term:200N | ||
| Bending radius (installation) | 20x cable Ø | ||
| Bending radius (operation) | 10x cable Ø | ||
See Point 6: Test Methods
| Standard | ITU-T G.652D | ||
| Optical | Fibre attenuation | @ 1310 nm ≤0.36 dB/km | @ 1550 nm ≤0.22 dB/km |
| Mode field diameter (MFD) | 9.2 ± 0.4 µm@1310nm | ||
| Zero dispersion wavelength | 1300~1324 nm | ||
| Zero dispersion slope | ≤0.092 ps/nm² ∙km | ||
| Polarisation mode dispersion (PMD) | ≤0.2 ps/√km | ||
| Cable Cut-off wavelength | ≤1260 nm | ||
| Geometric | Outer diameter | 245 ± 10 µm | |
| Cladding diameter | 125 ± 1.0 µm | ||
| Core/clad concentricity error | ≤0.6 µm | ||
| Cladding non-circularity | ≤1.0 % | ||
| Mechanical | Proof stress | ≥0.69 Gpa | |
| Test | Conditions | Acceptance criteria |
Tensile strength | Tensile strength: see Point 3 |
|
Crush resistance | Crush: see Point 3 |
|
Impact | Impact energy: 5 J |
|
Torsion | Sample length: 2 m |
|
Repeated Bend | Bending radius: 20x cable Ø |
|
Temperature cycling | -20℃→ +60℃ |
|
Water penetration | Sample length: 3 m |
|
All optical measurements at 1550nm (G652D) or 1300 nm (OM2/OM3/OM4)
| Cable type | Length Tolerance | 4km -5% / +5% |
D*d*B in cm |
| GJFXZY-6G.652D | Drum Type Dimensions Weight | Plywood suitable for indoor storage 75*35*57cm 200kg |
Dimensions including protection. Indicative values, actually
delivered drum sizes and weights may deviate. Cable ends sealed
with caps
|
