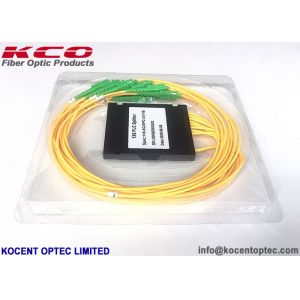

1.0m Single Mode ABS Modular PLC Splitter for LAN Applications

1x8 ABS Modular Single Mode Passive Fiber Optic PLC Splitter SC/APC 3.0mm 1.0m LSZH G657A1

Descriptions:

A fiber optic splitter is a passive optical device that can split or separate an incident light beam into two or more light beams.

These beams may or may not have the same optical power as the original beam, based on the configuration of the splitter. By means of construction, the outputs of a optical splitter can have varying degrees of throughput, which is highly beneficial when designing optical networks, whether the optical splitter is used for network monitoring or for a loss budget in a passive optical network (PON) architecture.

Generally, there are two types of fiber optic splitters, which are FBT splitters and PLC splitters.

PLC splitter, also called Planar Waveguide Circuit splitter, is used to divide one or two light beams to multiple light beams uniformly or combine multiple light beams to one or two light beams.

It is a passive optical device with many input and output terminals, especially applicable to PON (EPON, GPON, BPON, FTTX, etc.) to connect the MDF (main distribution frame) and the terminal equipment and to branch the optical signal.

Fiber PLC splitter provides a low cost light distribution solution with high stability and reliability.

Introduction:

Kocent Optec Limited supply full series of fiber optic PLC Splitter such as: Mini Tube Type, ABS Box Modular Type, LGX box type, Rackmount type, Wall mount type, ....
We provide a whole series of 1 x N and 2 x N splitters that are tailored for specific applications.
With more than 10 years of experience in passive fiber optic production, and closed of QC process, we promise that 100% of goods are tested and pass tested before shipment.

Features:

FTTX Deployment
FTTH Network
LAN
CATV System
Optical Signal Distribution
Passive Optical Network(PON)
Fiber Optic systems
Measuring System
Laser System
DWDM and CWDM System
Data Communications
Fiber optic testing

Applications:

Fiber optic splitters play an increasingly significant role in many of today’s optical network topologies.
They provide capabilities that help users maximize the functionality of optical network circuits from FTTx systems to traditional optical networks. And usually they are placed in the central office or in one of the distribution points (outdoor or indoor).

Specifications:

Fiber length	1m or custom length
Connector Type	Custom specified
Optical Fiber Type	Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min *	55
Return Loss (dB) Min *	55 (50)
Power Handling (mW)	300
Operating Wavelength (nm)	1260 ~ 1650
Operating Temperature(°C)	-40~ +85
Storage Temperature(°C)	-40 ~ +85
Port Configuration	1x2	1x4	1x8	1x16	1x32	1x64
Insertion Loss(dB) Typical	3.6	7.1	10.2	13.5	16.5	20.5
Insertion Loss (dB) Max	4.0	7.3	10.5	13.7	16.9	21.0
Loss Uniformity (dB)	0.6	0.6	0.8	1.2	1.5	2
PDL(dB)	0.2	0.2	0.2	0.25	0.3	0.35
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temp. Dependent Loss (-40~85 ) (dB)	0.4	0.4	0.4	0.5	0.5	0.5
Port Configuration	2X2	2X4	2X8	2X16	2X32	2X64
Insertion Loss(dB) Typical	3.8	7.4	10.8	14.2	17	21
Insertion Loss (dB) Max	4.2	7.8	11.2	14.6	17.5	21.5
Loss Uniformity (dB)	1	1.4	1.5	2	2.5	2.5
PDL (dB)	0.2	0.2	0.4	0.4	0.4	0.5
Wavelength Dependent Loss(dB)	0.8	0.8	0.8	0.8	0.8	1
Temp. Dependent Loss(-40~+85°C)	0.5	0.5	0.5	0.8	0.8	1

Product photos:

Packing way:

Our PLC Splitter Family:

OEM/ODM Service:

If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

Packing:

According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:

International express such as UPS, TNT, DHL, etc
Internatioal air: CA, AA, EA, etc
By sea
Standard export sea port: Shenzhen, Hongkong, Ningbo
Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai

Product Tags:


*From:	Your email address is incorrect!
*To:	KOCENT OPTEC LIMITED
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Fiber Optic Splitter
Brand Name:	KCO, Kocent Optec Limited
Model Number:	KCO-ABS-1x8-3.0-1.0M-SCA
Certification:	ISO9001, RoHS
Place of Origin:	Guangdong, China
MOQ:	Negotiation
Price:	Negotiation
Payment Terms:	Western Union,T/T,L/C
Supply Ability:	20,000 set/ month
Delivery Time:	2~5 days
Packaging Details:	Carton box, wooden pallet
Package type:	ABS box modular
Length:	1.0m
Splitter type:	1*16 1x16
Connector:	SC/APC
Cable:	0.9mm/ 2.0mm/ 3.0mm
P/N:	KCO-ABS-1x8-2.0-1.5M-SCA
