| Categories | RA Copper Foil |
|---|---|
| Brand Name: | OEM |
| Certification: | ISO / SGS / RoHS |
| Place of Origin: | China |
| MOQ: | 50kg |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 550T Per Month |
| Delivery Time: | 10 - 15 Days |
| Packaging Details: | Exporting Wooden Case |
| copper content: | min99.99 |
| peel strength: | 1.35N/MM |
| thickness: | 0.035mm |
| material: | cu |
| density: | 8.9g/cm³ |
| Application: | lithium battery special use copper foil |
| Material: | Red Copper |
| Alloy or not: | Non-alloy |
| Shape: | Coil |
| Color: | Red Coppery |
| Company Info. |
| Beijing Silk Road Enterprise Management Services Co.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

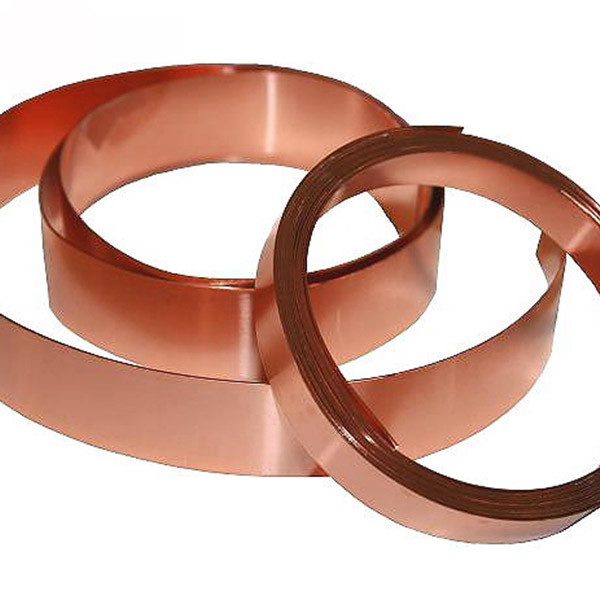

FPC FCCL FPCB 25μm 70μm Thin RA Copper Foil
Dimension Range:
Copper Foil thickness from 12~100µm can be supplied for FPC.
Width can be made according to clients’ requirement up to 650mm.
Applications:
Flexible Copper Clad Laminate(FCCL), Fine Circuit FPC, LED coated crystal thin film, FPCB.
Features:
The material has higher extensibility, and has a high bending resistance and no crack.
Table 1:FPC T2 high flex rolled copper foil properties (GB/T5230-2000,IPC-4562-2000)
| Item | Unit | Parameters | |||||
| 12μm | 18μm | 25μm | 35μm | 70μm | |||
| Mass per unit(±5%) | g/m² | 107 | 160 | 300 | 400 | 445 | |
| Cu+Ag | % | ≥99.99 | |||||
| Temper | H | O,H | O,H | O,H | O,H | ||
| Surface roughness | Rz | μm | 0.4 | 0.5 | 0.7 | 0.74 | 0.76 |
| Tensile strength | Normal Temp /23℃ | N/mm² | ≥430 | ≥450 | ≥450 | ≥460 | ≥460 |
| High Temp /220℃ | N/mm² | ≥140 | ≥150 | ≥170 | ≥210 | ≥220 | |
| Elongation | Normal Temp /23℃ | % | ≥1.5 | ≥3.0 | ≥4.0 | ≥4.2 | ≥4.5 |
| High Temp /220℃ | % | ≥8 | ≥10 | ≥18 | ≥28 | ≥30 | |
| Fatigue Resistance (annealed) | % | 65 | 65 | 65 | 65 | 65 | |
| Hardness | HV | ≤50 | |||||
| Maximum resistivity | Ωmm2/m | 0.0171 | |||||
| Electrical conductivity | % | ≥98.3% | |||||
| Pinhole test results | piece/㎡ | Pinhole area more than 0.5 mm²,0.005 piece/㎡ | |||||
Note: 1. Above figures based on the material temper H.
2. Copper Foil has smooth and shiny surface,without any coating..
3. Testing method follows our company standard.
|
