| Categories | PV Solar Panels |
|---|---|
| Place of Origin: | CHINA |
| Brand Name: | OEM |
| Supply Ability: | 10000PCS |
| Packaging Details: | Multiple packaging |
| MOQ: | Negotiable |
| Price: | Negotiation |
| Certification: | ISO9001, CE, SGS |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Type: | PERC |
| Size: | 1965*992*40 mm |
| Panel Efficiency: | 21.1-21.8% |
| Product name: | Poly 270-350 W Module |
| Cell: | Poly |
| Dimension: | 1640*992*35 mm |
| Featured: | 5 busbar solar cell design |
| Cable Cross Section Size: | 4 Square millimeter |
| No. of cells: | 60(6*10) |
| Junction Box: | IP 67,3 diodes |
| Connector: | QC4 10-3 |
| OEM Order: | Accptable |
| Solar panel: | Poly 270-350 W |
| Company Info. |
| Beijing Silk Road Enterprise Management Services Co.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

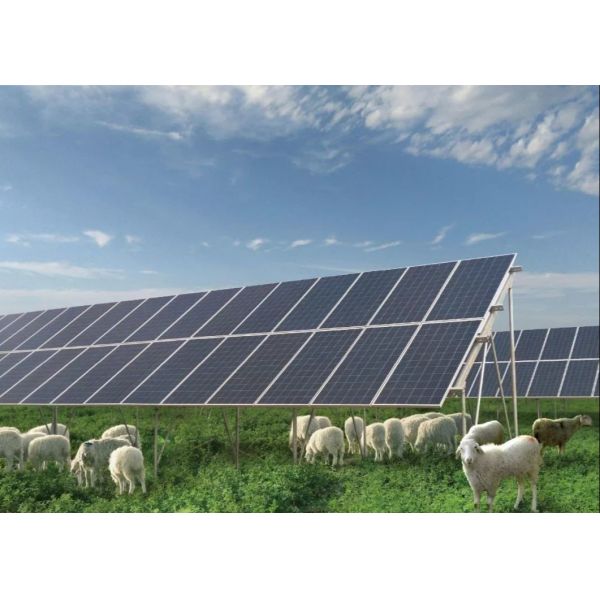

Big Size 350 Watt Polycrystalline PV Solar Panels
Product Description
Tempered Glass
* 12% Ultra Clear Tempered Glass.
* 30% Lower Reflection
* 3.2mm thickness
* >91% Higher Transmittance
* High mechanical strength
EVA
* >91% Higher Transmittance EVA,
* Higher GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer Durability
Solar Cells
* High-Efficiency PERCIUM Cells
* 93 Fingers PV Cells, Anti-Pid
* Appearance Consistency
Frame
* Aluminum Alloy Frame
* 120N Tensile Strength Frame
* 110% Seal-lip Design Glue Injection
* Black/Silver Optional
Solar Juction Box
* IP67 Waterproof, Closed
* 4mm2, 6mm2 Wire Size Range
* -40 ℃ to +85 ℃ Temperature Range
* Innovative full-glue-filled junction box
PV Connector
* 4mm2 Qualified cable with PV Connector
* 500N Tensile Strength
Electrical Parameters | |||
Type | HG60M 270 | HG60M 275 | HG60M 280 |
Rated Maximum Power (P max)[W] | 270 | 275 | 280 |
Open Circuit Voltage (Voc)[V] | 37.92 | 38.18 | 38.43 |
Maximum Power Voltage (Vmp)[V] | 30.72 | 30.94 | 31.19 |
Short Circuit Current (Isc)[A] | 9.28 | 9.36 | 9.44 |
Maximum Power Current (Imp)[A] | 8.79 | 8.89 | 8.98 |
Module Efficiency [%] | 16.5 | 16.9 | 17.2 |
Power Tolerance | 0~+5 W | ||
Temperature Coefficient of Isc(α_Isc) | +0.058%/℃ | ||
Temperature Coefficient of Voc (β_Voc) | -0.330%/℃ | ||
Temperature Coefficient of Pmax (γ_Pmp) STC | -0.400%/℃ | ||
Irradiance 1000W/m², cell temperature 25℃, AM1.5G | |||

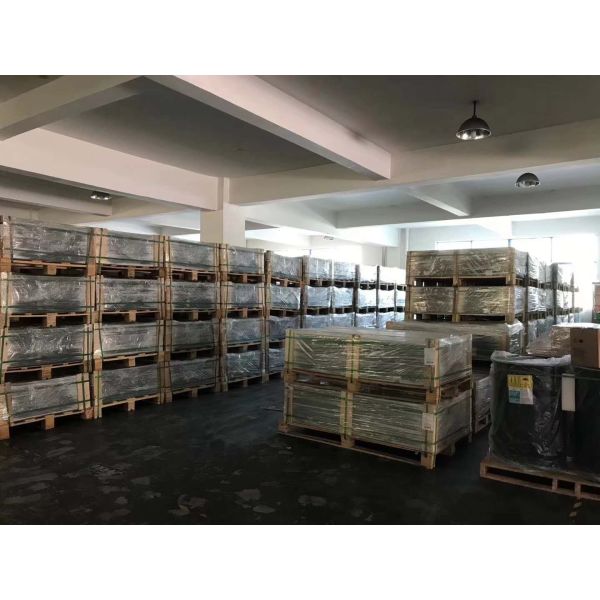

Packing & Delivery
|
