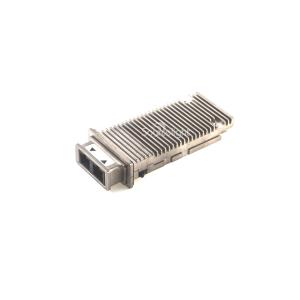

10g X2 Optical Module Lw 1310nm 10km Sc Smf For 10ge Core Router And Ethernet
Overview
X2 LR transceiver module is a hot pluggable in the Z-direction module that is usable in typical router line card applications, Storage, IP network and LAN and compliant to X2 MSA.
The X2 LR is a fully integrated 10.3Gbit/s optical transceiver module that consists of a 10.3Gbit/s optical transmitter and receiver, XAUI interface, Mux and De-mux with clock and data recovery(CDR).This version of Sourcelihgt Inc. transceiver line uses an uncooled 1310nm DML Laser Diode to achieve 10km over standard single mode fiber as 10GBASE-LR of the IEEE 802.3ae.
Features
SC Receptacle 1310nm DFB Laser
SC Duplex Optical Connector
Hot Pluggable 70-PIN Connector with XAUI Electrical Interface
Management and control via MDIO 2-wire interface
Power Supply : +3.3V, APS(+1.2V),
Power Dissipation 3.5W Maximum
Diagnostic Optics Monitoring
Temperature Range: 0~ 70 °C
ROHS6 Compatible
Parameter
| Package (Form Factor) | X2 LR |
| Data Rate (typical) | 10.3 Gb/s |
| Centre Wavelength | 1310nm |
| Distance | 10km |
| Diagnostics | Digital Monitor |
| Transmitter | DFB Laser |
| Receiver | PIN photo detector |
| TX Output Power (dBm) | -8~-0.5 |
| RX Sensitivity (dBm) | -14.4 |
| Low/High Case Temperature | 0°C~70°C |
| Voltage Supply (typical) | 3.3v |
| Connector | Duplex SC/UPC |
Application
10GE Ethernet switches and routers
10GE Core-routers
10GE Storage
Other 10Gbps Ethernet Transmission System
FAQ(Frequently Asked Questions)
1. Can I have a sample order?What is your MOQ?
Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable,We do not have MOQ,1 sample is available.
2. What is the lead time?
For usual products,We keep stock,could ship 1~3 days after PO.For
big quantity and special products,Please check lead time with our
sales.
3. How do you ship the goods and how long does it take arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5
days to arrive.
4. Dose your modules compatible to .(HP/Extreme/Juniper,ect)
Yes,we code the optical transceivers compatible to
(HP/Extreme/Juniper).
5. What is your payment terms?
Usually,we need prepayment by T/T,West Union or Cash.Could also
support Credit terms like NET 7DAYS,NET30 DAYS or COD(cash on
delivery) for old customers after credit application is approved.
6. What is your warranty time
We promise 3 years warranty for all products shipped from us.
7. Could I use our own logo and label?
Yes,we could provide a OEM service and make the products with your
own label.
|
