| Categories | Insulation Anchor Pins |
|---|---|
| Brand Name: | Huihao |
| Model Number: | insulation anchor pins |
| Certification: | ISO9001-2015 |
| Place of Origin: | China |
| MOQ: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 500000 pcs per 15 days |
| Delivery Time: | 15 days after the payment |
| Packaging Details: | paper carton + wood pallet |
| Material: | stainless steel , galvanized steel. mild steel |
| Head: | 7/8" as standard |
| Spindle Dia: | 12ga or 14ga As Standard |
| length: | 2-1/2" or 4-1/2" as standard |
| Head thickness: | 1mm |
| application: | Freeze Protection Cover |
| Company Info. |
| Huihao Hardware Mesh Product Limited |
| Verified Supplier |
| View Contact Details |
| Product List |
1. Sharp nail tip reduces penetration resistance
2. The nail is made of annealed material, which is soft and easy to bend.
3. Fully automated production with small specification error and accurate size
4. The nail seat is firm and does not fall off.
5.Aging resistance Resist ,sudden temperature change, High heat resistance ,Simple construction

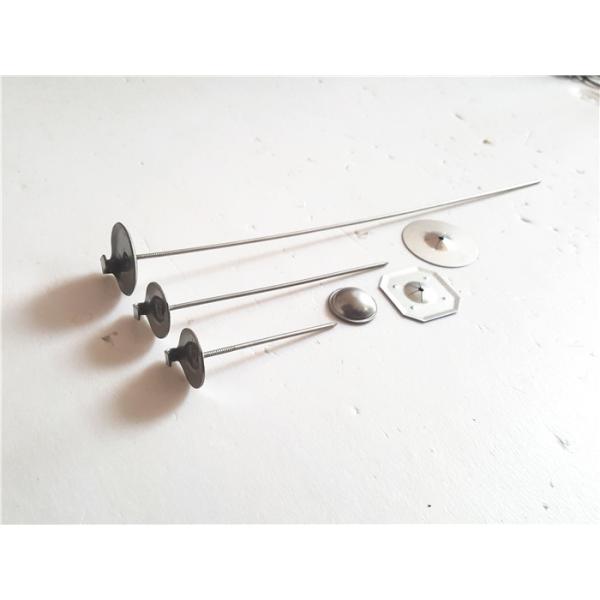

Specification Of Thermal Exhaust Blankets Metal Insulation Anchor Pins And Supply OEM Services
type | head size | hook length | head thickness | pin diameter | pin length |
1 | 22mm | 5mmx11mm | 1mm | 2.2mm, 2.7mm, 3mm | 25mm-140mm |
2 | 11mmx24mm | 5mmx11mm | 1mm | 2.2mm,2.7mm,3.0mm | 25mm-140mm |
3 | 30mm | 5mmx15mm | 1mm | 2.2mm,2.7mm,3.0mm | 63mm-250mm |
Materials: stainless steel , galvanized steel and mild steel
fixing parts : Self-locking washers , speed clips and dome cap
washers. or to be your request.
How to Thermal Exhaust Blankets Metal Insulation Anchor Pins And Supply
OEM Services
1: prepare the insulation blanket or removable cover
2: press the lacing anchor through the insulation
3: press the self locking washer into the pin to fasten the
insulation
4: bend over or clip off the pin
5:install the insulation blanket or removable cover
6: Lace the hook by lacing tie in order to fasten the insulation.
applications of Thermal Exhaust Blankets Metal Insulation Anchor Pins And Supply
OEM Services
| stainless steel material lacing anchors are wildy used for fixing: | |
|
|
realated production- lacing hook washer, And lacing ring
lacing hook washer | lacing ring |
 |  |
|
