UNSR50400 3" 6" SCH10S 150LBS Weld Neck Flange

Flanges Ti Gr2 UNSR50400 3" 6" SCH10S 150LBS WN flanges ASTM B381 ASME B16.5

1. titanium flange

Product name: titanium flange

Grades: TA0, TA1, TA2, TA3, TA4, TA5, TA6, TA7, TA9, TA10, TC4; Gr1, Gr2, Gr5

Specification (Size): DN10----DN1000

Delivery status: annealed (M) hot processed (R) cold processed (Y) (annealed, ultrasonic flaw detection)

Features: acid and alkali corrosion resistance, high strength, high temperature resistance

Application areas: petroleum, chemical, power

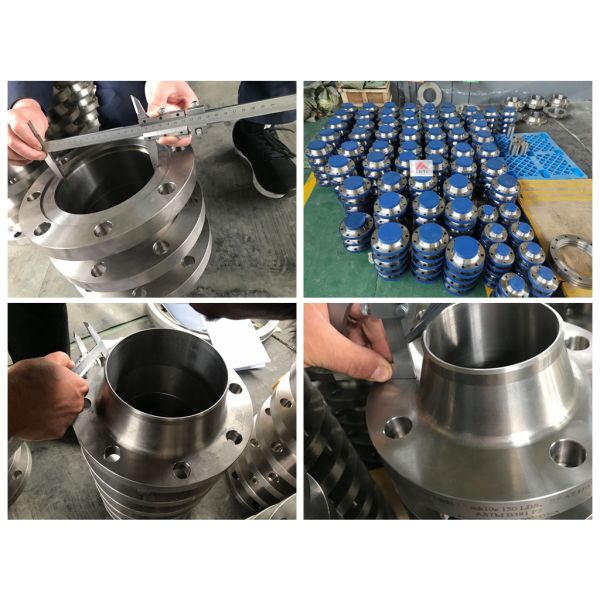

2. titanium flanges picture

Titanium flange sealing face

raised surface (RF), Male and Female (MF), Tenon groove surface (TG), metal ring connection surface ,total four kinds.

titanium flanges function

The flange, gasket and bolt are connected to each other as a detachable connection of a group of combined sealing structures.

Flange connection is an important connection method for pipeline construction.

The flange connection is easy to use and can withstand large pressures.

Different grade titanium

三 Inspection (BV ,SGS ,TUV .so on)

All Test Items

Visual testing (VT)

Ultrasonic Testing (UT)

Radiographic Testing (RT)

Magnetic particle testing (MT)

Penetrant Testing/Dye penetrate (PT)

Eddy Current testing (ET)

Acoustic Emission(AE)

Baoji Lihua Non-ferrous Metal Co., Ltd. was established in 2006. The company relies on theadvantages of Baoji industry and its strong technical support. It has been engaged in theproduction and sales of non-ferrous metals such as titanium, tantalum and nickel for many years.

The factory covers an area of 800 square meters. The factory has strong technical equipment. There are more than 20 sets of CNC machines, milling and drilling machines, and the annualproduction value is more than 30 million CNY.

The company's product is high quality and stable for many years, and it has obtained the Certification ISO 9001:2015, BV audit certification.

The company has been focusing on the improvement and stability of product quality for many years. Based on the business concept of maximizing customer service, we warmly welcome you to come for advice and business negotiation!
