SMD3030 800W Waterproof Led Flood Lights Symmetrical 20° Led Basketball Court Lighting

800W LED Sport Flood Light Symmetrical 20°/30°/60°/90° Asymmetrical 140*60° optics

Options:

> Driver: Meanwell ELG/HLG driver;

> Controls and Dimming: 1-10V, DALI,PWM,Zigbee for Option;

> Surge Protection Device: Meanwell SPD-20 20KV Surge Protector;

> Lens : Symmetrical 20°/30°/60°/90°,Asymmetrical 140*60° optics optional;

> Aiming Device: Laser Pointer;

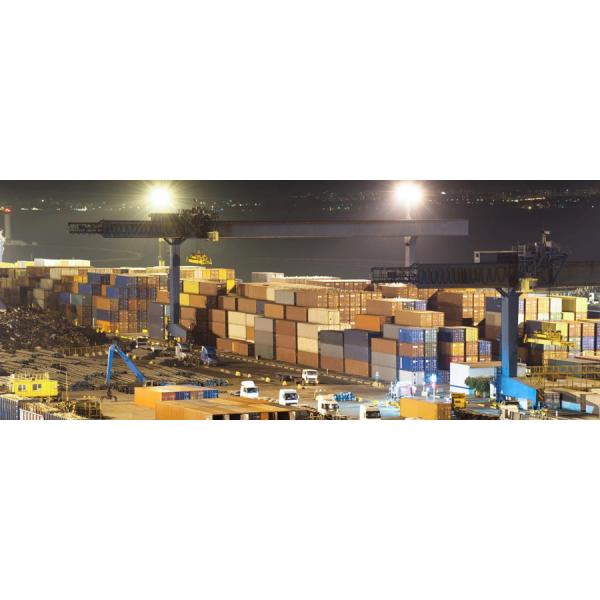

> Logistics areas (Ports)

> Stadiums and Racing tracks

> Public squares

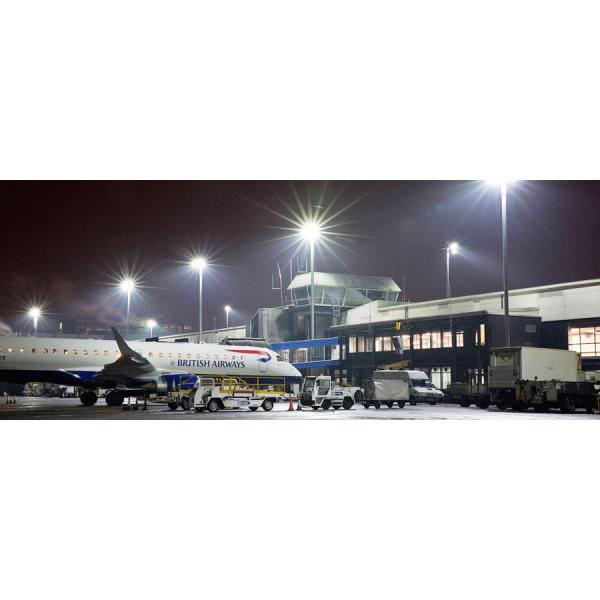

> Apron lighting (Airports), Parking and Industrial areas

> Recreational sports lighting applications (Football, Hockey, Basketball, Golf,Tennis, etc)

Model No.	DR-SPL300-FGXP	DR-SPL400-FGXP	DR-SPL600-FGXP	DR-SPL800-FGXP
System Watts/W	300W	400W	600W	800W
System Efficiency/LPW	150LPW
Lumen Output/lm	45.000±5%	60.000±5%	90.000±5%	120.000±5%
Rated Input Voltage/V	AC100~277V, 50/60Hz
LEDs Light Source	SMD5050
SDCM	<5
CCT/K	5000K for Standard (3000K/4000K/5700K/6500K Optional)
CRI/Ra	>70Ra (>80Ra for Option)
Power Factor	>0.95
THD	<10%
Beam Angle(Optional)	30°/60°/90°
UGR	<25
Surge Protection	4~6KV SPD built in Driver,Exterior SPD 20KV Meanwell Optional
LED Driver	Meanwell ELG / HLG Optional
IP Rating	IP65
Dimming(Optional)	1-10V, DALI,PWM,Zigbee for Option
Safety Protection	Open Circuit / Short Circuit / Over-voltage / Over Temperature Protection
Start Time	0.5s
Protection Class	ClassⅠ
Finishing Color(Optional)	Black RAL9017(Standard) / White RAL9016 Optional
Material	Aluminum+PC
Lifespan/hrs	70.000 Hrs (Ta=30℃@L70)
Operation Temp/℃	40°C to + 50°C(-40°F to 122°F)
Storage Temp/℃	- 40°C to + 65°C(-40°F to 149°F)
Switching Cycles	100,000 Times
Certificate	CE(EMC+LVD),RoHS,ENEC ,D-Mark,SAA,RCM Available

(300W) (400W) (500W)

(600W) (800W) (1000W)

Model No.	Net Weight/Kg	Outer Carton Size/mm	Gross Weight/Kg	QTY”/CTN
DR-SPL300-EGXP	13.1	590*505*250	14.2	1PCS/CTN
DR-SPL400-EGXP	16.9	680*505*250	18.2	1PCS/CTN
DR-SPL500-EGXP	4.8	790*505*250	23.5	1PCS/CTN
DR-SPL600-EGXP	22.1	830*590*250	28.4	1PCS/CTN
DR-SPL800-EGXP	30.8	830*690*250	32.5	1PCS/CTN
DR-SPL1000-EGXP	36.5	830*790*250	39.8	1PCS/CTN

    As a specialist in modern, efficient ,advanced LED lighting for industrial applications,DUALRAYS LIGHTING Co.,LTD. is one of the leading professional technology and marketing oriented NHTE (National High Technology Enterprise) in R&D,manufacturing,sales and service of intelligent, healthy and efficient industrial and sport LED luminaires.

    Our main products includes LED Moisture-proof Light, LED Highbay, LED Street Light,Solar LED Street Light etc.

    We have strong R&D team which work closely to Marketing and Sales Department,and strict quality control system and facilities to ensure the quality, and we have built strategic partnership with the international top brands,such as CREE, LUMILEDS,NICHIA,MEANWELL, ect, we have set up our own engineering laboratory for safety test,such as the Photometric testing, EMI testing, EMC testing, Surge Testing, ESD testing, IES file etc.

    All of our LED luminaires comply with CE,RoHS standards,and for the leading products,it is also TUV,ENEC,VDE,SAA,C-Tick,LM79,LM80,CB listed,we focus on Western Europe and Oceania market , the LED luminaires have been completely proven to be independent innovations and intellectual property.

    We are proud to provide innovative designs,affordable LED luminaires,high-touch service, excellent customer experience for the leading distributor,wholesaler,and contractor from Western Europe and Oceania.

   In addition,we can provide our customers value added service with Dialux software for lighting design projects free of charge.

   DUALRAYS adheres to independent innovation, Dualraysers try to build a world well-known LED industrial Lighting Brand.

   DUALRAYS is practicing the enterprise management principle “Perfect or Nothing”.

   Technology Light Up Civilization!
