| Categories | Duct Fiber Optic Cable |
|---|---|
| Brand Name: | Jiqian |
| Model Number: | GYXTW |
| Certification: | ISO9001 ROHS CE-EMC FCC SDOC |
| Place of Origin: | Guangzhou,China |
| MOQ: | 1km |
| Payment Terms: | L/C, T/T,Alipay |
| Supply Ability: | 4500km |
| Delivery Time: | 3-5 days |
| Packaging Details: | Wooden drum |
| Cable brand: | Jiqian |
| Number of Conductors:: | 8 cores |
| Application: | Duct/aerial |
| Armoured: | Yes |
| Fiber type: | Fiberhome/YOFC |
| Temperature range: | -40+70°C |
| Manufacturer: | Yes |
| Company Info. |
| Guangzhou Jiqian Fiber Optic Cable Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Outdoor Armoured Single Mode 4 6 8 12 Cores Fiber Optic Cable

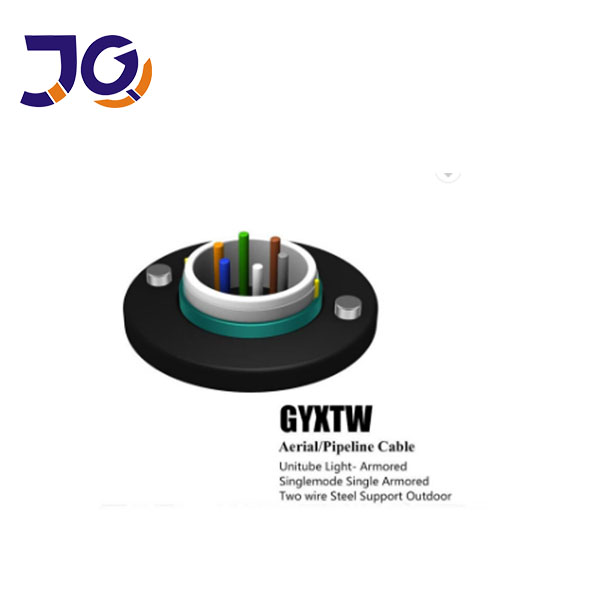

The structure of GYXTW cable is 250µm optical fiber ribbon is inserted into a loose tube of high modulus material. The loose tube is filled with gel filling compound. The loose tube is covered by a PSP longitudinal.Two parallel steel wires are placed on both sides,and then the cable is completed with PE outer sheath.
Cable structure and parameter
| Fiber count | Tube diameter | Steel wire diameter | Sheath thickness (nominal*) | Overall diameter (nominal**) | Weight (approx.) |
| mm | mm | mm | mm | kg/km | |
| 6 | 2.5 | 1.0 | 2.3 | 8.4 | 73 |
| 12 | 3.0 | 1.0 | 2.3 | 8.9 | 81 |
| Item | Specification |
| Fiber type | Single mode |
| Fiber material | Doped silica |
| Attenuation coefficient @ 1310 nm @ 1383 nm @ 1550 nm @ 1625 nm | ≤ 0.36 dB/km ≤0.35 dB/km ≤0.22 dB/km ≤0.25 dB/km |
| Point discontinuity | ≤ 0.05 dB |
| Cable cut-off wavelength | ≤ 1260 nm |
| Zero-dispersion wavelength | 1300 ~ 1324 nm |
| Zero-dispersion slope | ≤0.092 ps/(nm².km) |
| Chromatic dispersion @ 1288 ~ 1339 nm @ 1271 ~ 1360 nm @ 1550 nm @ 1625 nm | ≤3.5 ps/(nm. km) ≤5.3 ps/(nm. km) ≤18 ps/(nm. km) ≤22 ps/(nm. km) |
| PMD | ≤0.2 ps/km½ |
| Mode field diameter @ 1310 nm | (8.6~9.5)±0.6 um |
| Core / Clad concentricity error | ≤0.6 um |
| Cladding diameter | 125.0 ± 1 um |
| Cladding non-circularity | ≤1.0% |
| Primary coating diameter | 245 ± 10 um |
| Proof test level | 100 kpsi (=0.69 Gpa), 1% |
| Temperature dependence 0℃~ +70℃ @ 1310 & 1550nm | ≤ 0.1 dB/km |
FAQ:
1,Q:Are you a factory or trade company?
A:We are a factory
2,Q:What is the MOQ?
3.Q:Which brand of fiber do you use?
A:Corning,YOFC,Fiberhome,etc
4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our
customers as we know business is always from small order.
5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It
depends on the order quantity.
6.Can you supply customized products and logo?
A:Yes. We supply OEM service.
7.What’s your payment terms?
A: We accept T/T,L/C,Western Union, 30% in advance and 70% before shipment.
|
