HS-300 SUS304 316 Removes Solids Wastewater Screening Equipment Static Screen Wastewater

What Is Static Screen

DAGYEE provides reliable performance in liquid/solid separations for municipal and industrial applications, especially when sieving fibrous and non-oily solids. There are no moving parts, motors or complicated connections. Liquid/solid separation screens are economical and simple to operate.

HS-300 Static Screen Specifications

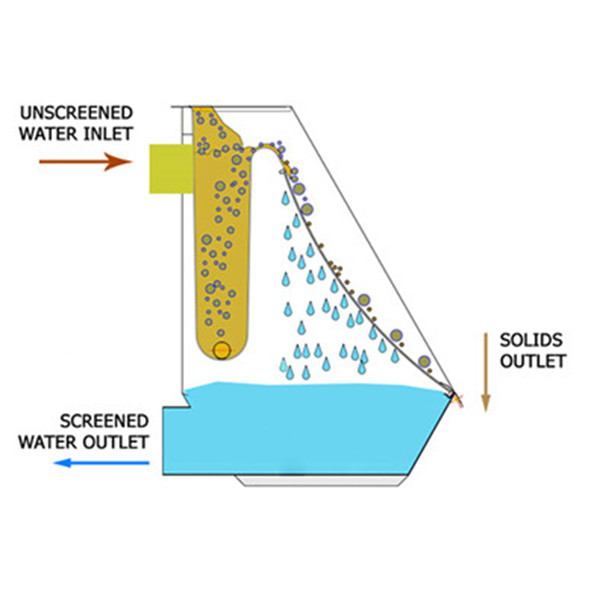

How Does Static Screen Works

Influent pumped into the inflow chamber through the inlet of the pipe. As the water level rises, it will flow under the wage weir and the pivoting baffle. Liquids and solids flow through the screen, and Liquids falls through the screen, while gravity and more screening push the captured solids toward the discharge point. The wastewater passes through the filter enters distribution chamber and flows through the outlet tube. The drip-proof assembly at the bottom of the filter directs excess water to the waste chamber. When the solids reach the bottom of the screen, they slide into the container, conveyor or other suitable receiving equipment. Dagyee offers a variety of rear screen and dewatering equipment. To assemble the most cost-effective screening system. Welcome to consult.

Advantages From Simple Design And Robust Construction

• No moving parts, no motor
• Very low installation cost, no maintenance required
• Only need regular cleaning
• Quiet operation
• V shape of the bar provides a self-cleaning effect on the screen

Static Hydraulic Screen

• A Better Environment for Beaver Pond
• Whitewater Reuse
• Broke Thickening
• Helps Nut Grower Recycle Wastewater
• Screening fire sprinkler water
• Storm water screening
• Better Dairy Pen Waste Management
• Textiles and laundries
• Fruit and vegetable canning
• Wine producers and distilleries
• Meat and processed meals industry
• Slaughterhouse
• Fish processing
• Breweries and dairies

About Dagyee

Our company possesses complete sets of process design, equipment supply, constructions, and technology innovation. with certification of CE, SGS and ISO, which can be widely used in munici- pal,Sewage, Industrial wastewater treatment,DAGYEE has a powerful team of R&D personnel with profound professional experience which has won many patents.

One-stop service network for developing, designing, providing products and excellent after-sales service.

Our Factory

DAGYEE Pay attention to product quality first, focus on every detail of the product, strictly inspect all links in production, clean workshop, advanced manufacturing technology, perfect management and inspection system, product quality is better than peers , And can perform ANSI, ASME related inspection standards.

Project Case

The products are widely used and recognized in petrochemical, papermaking, printing and dyeing textile, pharmaceutical and chemical industry, surface treatment and other industries, as well as industrial water recycling, tap water pretreatment, desalination, advanced treatment and other fields, and are exported to many countries including Europe and the United States.
