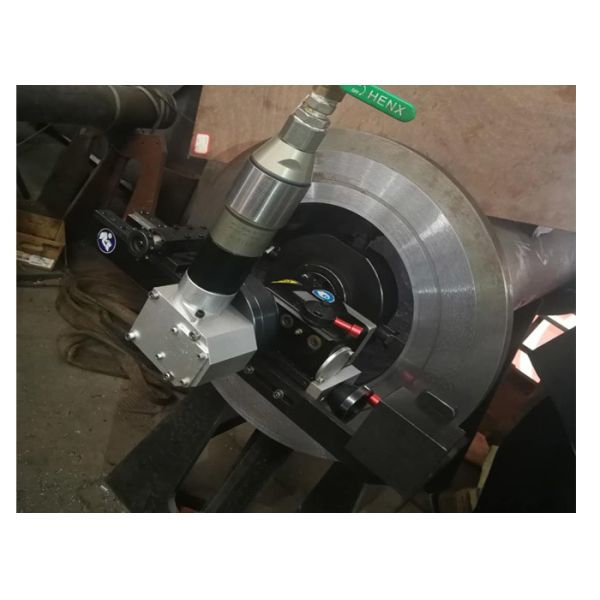

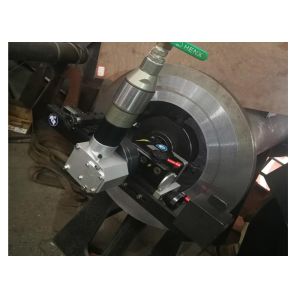

Resurfacing Pipe And Tube Portable Flange Facer

Portable Flange Facers for resurfacing pipe and tube flanges flange facing machine

WFP-610 portable flange facer is a reliable product, portable flange facing macine are easy to use for resurfacing pipe and tube falnges, with no special training requirement , it's good to learn and control.

Portable flange facing machine, it's powerful and versatile tools which makes it cut through the toughest material and work on a wide range of face diameter.

On site flange facer mounted inside and outside the piep for stable and accurate machining.

WFP-610 Flange Facing is an overall cost effective technique which allows you to face, bevel,and turn pipe,value and pump flange with ease . Which in turn helps to keep your plant running efficiently, safely and more environmentally friendly.

It gives machine shop accuracy , combined with ease of handing and portablity in the flange range .Spur gears engage directly on the drive ring, keep power requirements and losses to a minimum and allowing maximum torque at the cutting tool . When the machine is used in the vertical plane , balancing is greatly reduced.

WFP-610 can be used in horizontally,verically or overhead planes.

Here is the drawing of WFP-610 portable flange facing machine

Quick and Easy Setup & Removal

• Separate mounting chuck.

• All centering and leveling is done on the chuck.

Lightweight

• Body of machine weighs only 99 lbs (45 kg).

• Smallest mounting chuck weighs about 5 lbs (2.2 kg).

Safe and Quiet Operation

• Stationary feed rate selector.

• Machine is controlled without touching any moving parts.

• Exhaust air is routed through body of machine for increased muffling.

Simplified Operation

• Single selector switch for bidirectional radial feed or vertical downfeed.

• One wrench size for clamping jaws and body draw bolt.

Cuts Chamfers and Grooves

• Compound tool head and downfeed for cutting angles and grooves.

The WFP-610 machine is supplied complete with toolkit including tools and inserts, air filter lubricator and hose connection, all required mounting base and extensions, storage / shipping box, CE certificate, packing list and manual.

WFP-610 portable flange facing machine applications:

Flange facing machine application for Oil, Gas and Chemical ,Power Generation ,Heavy Equipment ,Ship building & repair

Typical applications:

• Piping system flanges

• Valve flanges and bonnet flanges

• Heat exchanger flanges

• Vessel flanges

• Flange faces on piping systems

• Pump housing flanges

• Weld preps

• Tube sheet bundles.

• Bearing mounting bases

• Final drive hubs

• Bull gear faces

• Manufacturing of mining equipment

• Slew rings

• Bearing mounting bases

• Crane pedestal flange.

Portable flange facing machine flange facer portable machine application:

Flange face machine

RTJ grooving surface remachining

Counterbore

Chamfer

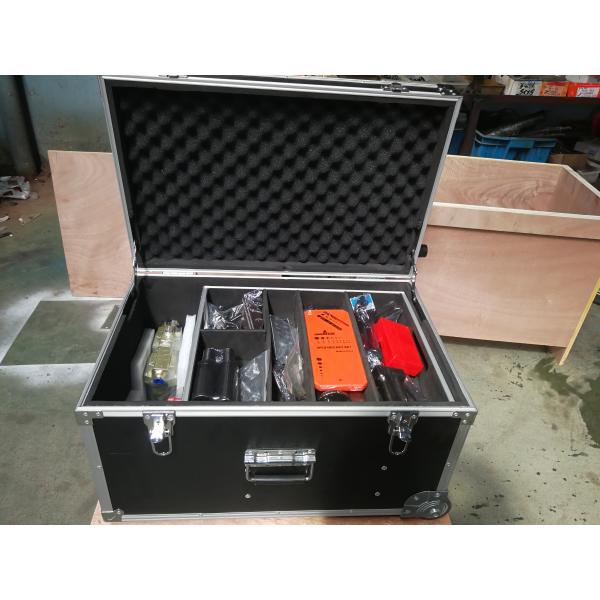

Packing pictures:

package :

size :

77 x 51 x 55cm -

Weight:

62kg+18kgs wooden box in total (Aluminum box+wooden box)

Easy to carry and reliable quality on site shipping.

Company information:

 Zhejiang Wellnit Mechanical Technology Co.,Ltd

     Zhejiang Wellnit Mechanical Technology Co., Ltd. is located in Binhai Economic and Technological Development Zone, Wenzhou, Zhejiang Pro.China. It is a modern high-tech enterprise integrating R&D, manufacturing, sales and service.

The company specializes in the production of electric, pneumatic, hydraulic, CNC and explosion-proof groove cutting equipment, steel plate groove equipment.

  The company adheres to the principle of “taking market demand as the guide, customer satisfaction as the goal, pioneering and innovation as the driving force,honesty and trustworthiness as the principle, quality and cheap as the pursuit”, and has won the domestic market with excellent quality and perfect service. The international market is highly praised and trusted by users. The company's top ten series of dozens of products have been exported to more than 60 countries and regions in Europe, America, Middle East, Southeast Asia, etc., obtained CE certification, and passed the ISO9001 international management system certification.

      The company has dozens of senior engineers, professional engineers, senior management, sales and development talents, advanced testing equipment and perfect testing methods, providing the most powerful support for product development, innovation, production and marketing, advanced management concepts. And a perfect service system to inject new vitality into the company.

      Products are widely used in petroleum, power, steel, chemical, shipbuilding, natural gas, nuclear industry, pressure vessels and other industries, pipelines, power engineering installation and repair. For example, the West-East Gas Pipeline and the South-to-North Water Transfer have achieved significant production efficiency and economic benefits.
