| Categories | Compound Feed Sewing Machine |
|---|---|
| Brand Name: | Jianglong |
| Model Number: | JL-1342L |
| Place of Origin: | Dongguan,China |
| MOQ: | 1 set |
| Price: | USD 993 - 1103 per set |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 100000 Set per month |
| Delivery Time: | 5-8 Work days |
| Packaging Details: | The inner packaging is a foam box, and the outer packaging is a carton |
| product name: | Leather sewing machine |
| Max. Sewing Speed: | 2200(r.p.m) |
| Max.Stitch Length: | 0-10.5 mm |
| Diameter of Cylinder Bed: | 70mm |
| Needle size: | DP*17(21#) |
| Hook: | Large Vertical hook（28mm Core） |
| Lubrication: | Automatic lubrication |
| Working Space: | 250*110mm |

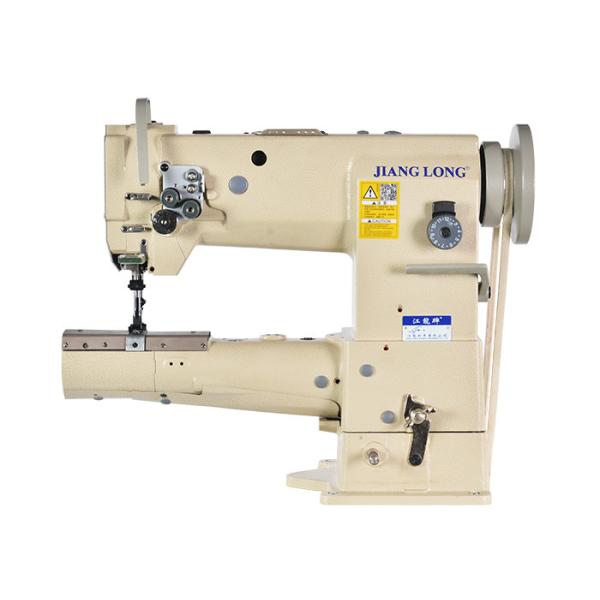

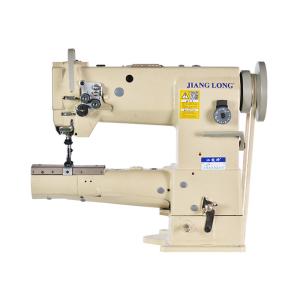

1342L Heavy Duty Industrial Lock Stitch Double Needle Compound Feed Sewing Machine
Product introduce
This is a cylindrical double-needle thick material sewing machine, using a boutique extra-large shuttle, a new adjustable tooth frame, and increasing sewing power on the basis of the old model. It is suitable for leather goods, handbags, luggage, environmental protection dust cover, bags and other items. Sewing.
Product advantage
The fully automatic circulating oil supply and lubrication design greatly reduces the wear of parts and reduces sewing noise. The selection of spare parts and materials is precise, and the use of a new adjustable bracket is adopted, which greatly improves the performance and life.
Parameter of machine
| Model | JL-1342L |
| Number of Needle | Double Needle |
| Max. Sewing Speed | 2200(r.p.m) |
| Max.Stitch Length | 0-10.5mm |
| Diameter of Cylinder Bed | 70mm |
| Presser foot lift | 8 mm (by hand) 13 mm(by knee) |
| Needle size | DP*17(21#) |
| Hook | Vertical/large hook(28mm core) |
| Lubrication | Automatic lubrication |
| Working Space | 250*110mm |
| motor | Clutch Electric Motor, Electronic Energy-saving Machine |
| Mechanical Configuration | cylinder -bed |
| Feed Mechanism | Compound Feed |
| Dimensions | 58*29*61cm |
| Color | White |
| N.W | 37 KG |
Product details
1. Thread clamp, adjust the tension of the upper thread.
2. Automatic circulating oil supply device, an improved version
based on traditional manual refueling, equipped with a
high-pressure oil pump to automatically supply oil to all parts of
the machine to achieve free lubrication of various parts, greatly
increase the service life of the machine and reduce parts wear.
3. Reverse stitch handle and reverse stitch handle are in a static
state during sewing operation. If you need to reinforce the sewing
material, press the reverse stitch handle.
4. Adjust the stitch length digital dial.
FAQ
Q1. Is your company a factory or trading company? A. We are sewing machine factory, we focus on excellence sewing machine. |
Q2. How about your machine quality? A. I cannot answer to you from our side. But our customer said to us our machine quality is good and use it about two years no change voice. After you use it, you will more understand our quality. |
Q3.How about your price? |
Q4. Can I buy one or two pieces? |
Q5. How can I get a quotation? A. First please give us your email address and which machine are your interesting. |
|
