| Categories | Tianma TFT |
|---|---|
| Brand Name: | TIANMA |

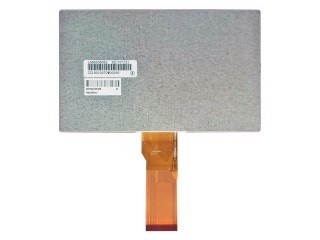

| Model Number: | TM070RDH10-40 |
| Certification: | ISO9001 |
| Place of Origin: | Japan |
| MOQ: | 1 |
| Payment Terms: | TT / Escrow 10 / Paypal / WesternUnion |
| Supply Ability: | 500PCS |
| Delivery Time: | 1-3 Working Day |
| Packaging Details: | With Original Factory Package |
| Size: | 7.0 |
| Resolution: | 800(RGB)×480, WVGA, 134PPI |
| Panel Type: | LCM , a-Si TFT-LCD |
| Pixel Format: | RGB Vertical Stripe |
| Bezel Opening: | 157.08(W)×89.39(H) mm |
| Contrast Ratio: | 800:1 (Typ.) (TM) |
| Operating Mode: | TN, Normally White, Transmissive |
| Lamp Type: | 3S8P WLED , 20K hours , Without Driver |
| Environment: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| Company Info. |
| Sapientia Display Co.,LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |
1.HIGHEST QUALITY STANDARD DISPLAYS
As a distributor,Sapientia display provides technical support for
the development of every type and class of LCD, from the design
stage right through to the production phase, while guaranteeing the
highest quality standards.
Our products can be customized for various applications and market sectors, including (but not limited to): automotive, medical, building automation, white goods, digital signage, security, transportation and industrial.
2.
| Panel Size : | 7.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×480, WVGA | RGB Vertical Stripe | 0.0642×0.1790 mm | 0.1926×0.1790 mm [134PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 154.08×85.92 mm | 157.08×89.39 mm | 164.9×100 mm | 5.7±0.3 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:9 (W : H) | Landscape type | - | |
| Fixation : | Without | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 160g (Typ.) | Antiglare | ||
3.
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 450 cd/m² (Typ.) | TN, Normally White, Transmissive | 800:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 80/80/60/80 (Typ.)(CR≥10) | 12 o'clock | 15 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6819K | 262K/16.7M (6-bit / 6-bit + Dithering) | X:0.309; Y:0.318 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 52% | 72% | 54% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 54% | 39% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4.
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 10/30/0.3/0.3mA (Max.)(ICC/IDD/IGH/IGL) | 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||
| Interface Features : | Position | Type | Interface | |||
| - | FPC | Parallel RGB (1 ch, 6/8-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 0.5 mm | 50 pins | DRGB-50P1C8B-115A | |||
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade
LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you
6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of
payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will
get reply within 24 hours.
|
