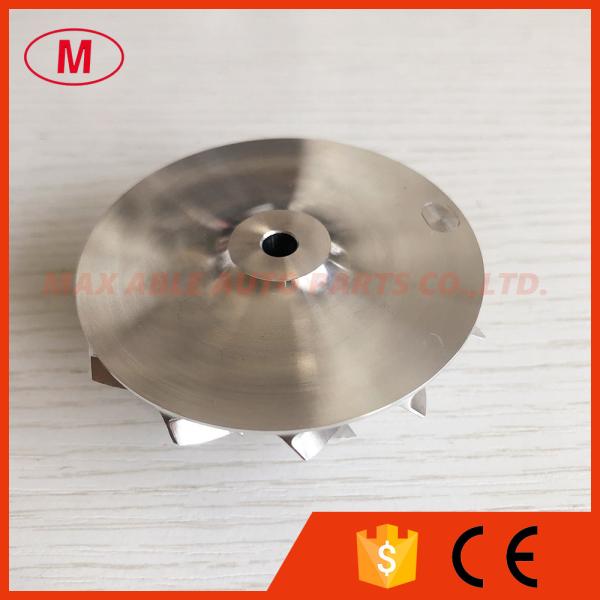

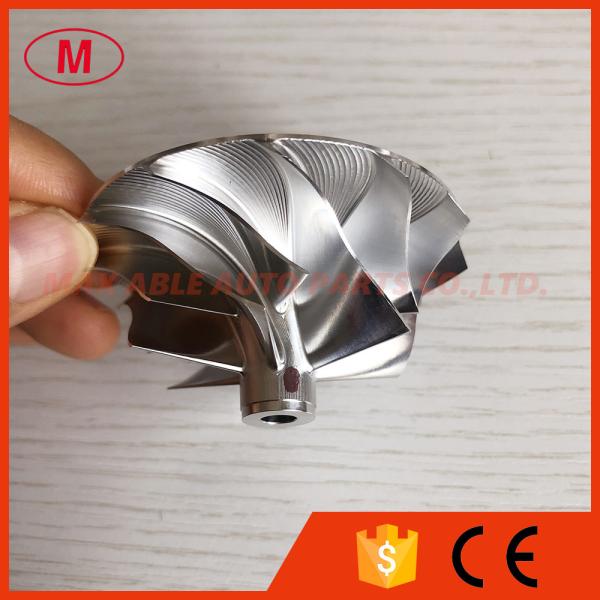

K16 5324-123-2201 45.78/61.98mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheel for 5324-970-7401

1. MODEL:K16 forward

2.K16 5324-123-2201 45.78/61.98mm 6+6 blades turbo billet/milling/aluminum 2618 compressor wheel for 5324-970-7401 / 5324-970-740

3.Size:

Nose diameter:11.69mm

inducer:45.78mm

Exduder:61.98mm

Tapered tip exducer:65.58mm

Tip height:4.63mm

Superback:2.67mm

Overall height:32.37mm

bore size :5.41mm

Trailing Angle:50

Cutback:8.0

Splitter height:16.15mm

sp height angle:-6.00

Blades height:23.25mm

6+6 blades

Forward rotation

Tapered tip angle:27 degree

Fit for OE compressor housing

Application:

5324-970-7401

5324-970-7400

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

The more models we also have.

We are specialized in Bosch ,Delphi,Denso ,Simens genuine and brand new  nozzle ,injector ,plunger ,control valve ,head rotors and we also specialized in made in China nozzle ,plunger ,head rotor ,injectors diesel parts and turbocharger and turbocharger spare parts.

We have factory to produce the turbocharger and turbocharger parts.

High quality and competive price can satisfy with your requirement.
