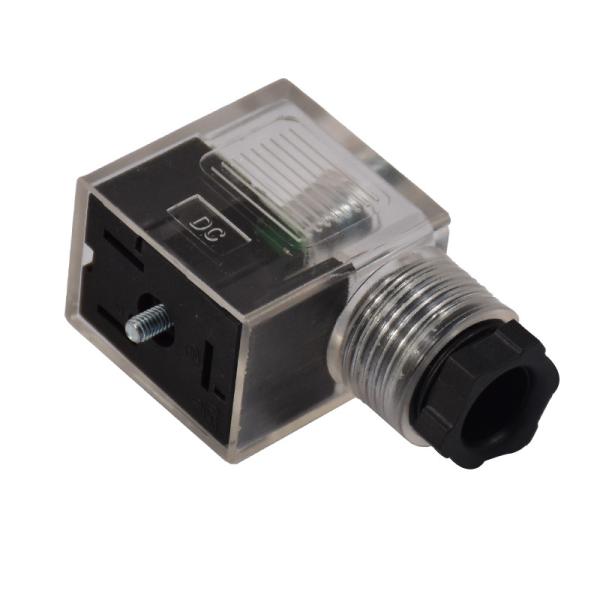

11mm Solenoid Valve Connector Equivalent Waterproof IP65 DIN 43650 EN175301

Solenoid Valve Connectors Equivalent Waterproof DIN 43650/EN175301 Female Industrial

1. Rigoal offers a wide range of solenoid valve connectors with available stock for immediate delivery at extremely favorable prices

2. The product lines have covers EN 175301-803 DIN43650 Form A / B / C and other special styles.

3. The solenoid valve connectors are normally used to supply power to solenoid valves, which widely used in:

* Hydraulic

* Pneumatic

* Electrical Appliance industry

4. Our Solenoid Valve Connectors meet the DIN 43650 Industry Standard and are ideal for providing power and protection.

General Details

Contacts: 2+PE

Connector design: female connector (panel mount)

Connector locking system: central bolt

Termination: screw clamp

Wire gauge (mm): min. 0,34 mm², max. 1,5 mm²

Wire gauge (AWG): min. AWG 22, max. AWG 16

Cable outlet: 6.0 - 8.0 mm

Upper limit temperature: 120 °C

Lower limit temperature: -30 °C

Electrical values

Rated current (40 °C): 10 A

Rated voltage: 250 V

Rated impulse voltage: 4000 V

Pollution degree: 3

Overvoltage category: III

Insulating material group: III

Volume resistivity: ≤ 15 mΩ

Insulation resistance: ≥ 10¹⁰Ω

EMC compliance: not shielded

Degree of protection: IP65

Mechanical operation: > 50 Mating cycles

Material

Contact material: CuSn (bronze)

Contact plating: Ni (nickel)

Contact body material: PA (UL 94 HB)

Housing material: PA

Component part drawing

Product Photos

Solenoid Valve Connector Series
