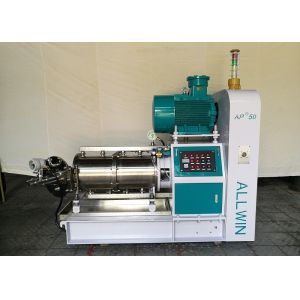

Ultrafine AP50 Mill Grinding Machine 37kW Wet Horizontal Bead Mill

37kW Ultrafine AP50 Disc Type Super Productivity Wet Bead Grinder With SIC Inner Chamber

This bead Grinder mills are main consists of chamber and disc dispersing system and motor. The double end mechanical sealing with independent technology could resistant to more than 1600 kinds of solvents. The bead grinder series have great flow rate and better fine discharging, the finally fineness can be reach 1um for D90 .The cooling efficiency is better than normal mills because the sectional double spiral water course is better to heat exchange. The grinding efficiency is higher 15-30% than traditional mill machines; the combined disperser can rapidly increase dispersing efficiency. All the materials of contact parts could be chose from wearable steel, SUS304, PU and silicon carbide ceramics for meeting different requirements.

The main parameter of bead grinder:

The Configuration instructions of bead grinder

NO.	Main parts	AP 50 Bead grinder	Notes
1	Outer chamber	304 stainless steel
2	Inter chamber	silicon carbide ceramics
3	Dispersing shaft	40Cr with hard chromium plating
4	Dispersing disk	304 Stainless steel
5	Mechanical seal	Double Mechanical seal with Pressure of 0.45 Mpa
5	Feeding and discharging end covers on the cylinder	304 stainless steel
6	Turbine centrifugal separator and pegs	304 stainless steel and YG6 pges
7	Static discharge screen ring	304 stainless steel screen ring with 304.Gaps: 0.5mm.
8	Mechanical seal	Intelligent double mechanical seal with mandatory lubricating-cooling system
9	Feeding pump	without pump,with appliance parts
10	Oil box	Non-Vision the inner box
11	Appliance configuration	Non Explosion-proof machine, suitable for water base materials, explosion-proof motor 30kW. Non Explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with Non EX-proof electrical contacts.
12	Fasteners and connecting parts	Stainless steel clamp-type connecting parts	Quick and convenient

The detailed production show of AP50 bead grinder:

Note:
1.We will recommend the suitable bead mills according to your information and demand, such as industry, fineness, temperature, viscosity, production capacity etcs.
2. The Materials of inner chamber and Dispersing disks can be selected according to your different grinding materials and industries.
3. The control system will be matching of different demand, such as Touch screen or traditional Button type.

If need more detailed information and Price, please don't hesitate contact us, Also Warmly welcome to visit us.
