| Categories | Aluminum Feed Beam Profiles |
|---|---|
| Brand Name: | HUANYU |
| Model Number: | HYFB7150MM |
| Place of Origin: | People's Republic of China |
| MOQ: | 5 Units |
| Payment Terms: | T/T |
| Supply Ability: | 50Units/Month |
| Delivery Time: | Within 3 Days |
| Packaging Details: | Plywood Case Length 400cm to 750cm |
| Length: | 7200MM Long Feed Beam Used On Mining Industry |
| Application: | Mining Industry, Tunnel Drilling , Blasting etc. |
| Materials: | 7020 Series Aluminum Alloy |
| Weight Per Meter: | Approximately 31KGS Per Meter |
| Distoration Tolearnce: | 5mm For Whole Length |
| Lead Time: | Immediately |
| Machined Or Not: | Machined |
| Company Info. |
| Chongqing Huanyu Aluminum Material Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

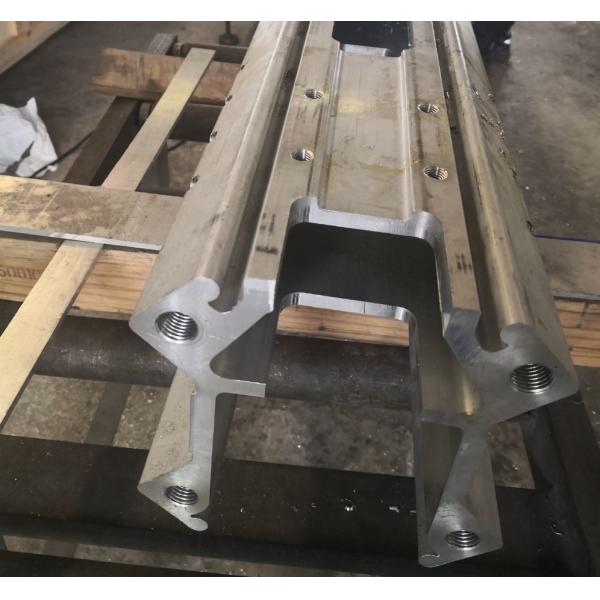

Machined 7200MM Long Aluminium Extruded Profiles Aluminium TF500 Upper Beam Profile TF500 Feed Beam
Customized TF500 Feed Beam Upper Beam And Ensure Immediate Shipment
1. Material: Aluminum Alloy 7020 ; Heat treatment T6
2. Compliant with: GB/T6892-2006
3. Tolerance: twist degree--- less than 1degree per meter and 5
degrees for whole length;
curvature--- less than 1mm per meter and 5mm for whole length
4. Mechanic: σb≥320MPa, σ0.2≥270MPa, δ5≥8%
5. The surface is free from manufacturing defects, such as nicks,
dings, scratches .
6. Length Option: ranging from 2,100mm to 7,100mm (16 feet equal to 4876.80mm )
7. Feed Beam can be machined as per buyers' demand
8. Net Weight: 28.7kgs/meter
9. Package : Plywood case for Feed Beam
10. Single package size: Length x Width x Height = 488cm X19.7cm X19.6 cm
| Material Option | Aluminum Alloy 7020 |
| Heat Treatment | T6 Temperature |
| Standards | GB/T6892-2006 |
| Mechanic | σb≥320MPa, σ0.2≥270MPa, δ5≥8% |
| Feed Beam Surface | Free from manufacturing defects, such as nicks, dings, scratches |
| FB Length Option | Standard 16FT (4876mm)/ Ranging from 2100mm to 7100mm |
| Longitudianl Deviation | 1 mm/meter for longitudinal deviation and less than 5 mm for the entire length |
|
