| Categories | Interactive Touch Screen Kiosk |
|---|---|
| Brand Name: | XUNSHINA |
| Model Number: | XS-C86BH |
| Place of Origin: | China |
| MOQ: | 1PC |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 PCS per month |
| Delivery Time: | 7-10 working days |
| Packaging Details: | honeycomb carton inside, wooden case outside |
| Brightness: | 350cd/m2 |
| Backlight: | DLED |
| Display area: | 1895.04mm(H)×1065.96mm(V) |
| Resolution: | 3840（H）×2160（V）（UHD） |
| Dimension: | 1953.3*1164.5*91.7mm |
| Max resolution: | 3840*2160 |
| Contrast: | 1100:1（Typ.） |
| Product name: | conference touch kiosk |
| Touch screen: | Infrared touch 10 points |
| Power consumption: | ≦350W |

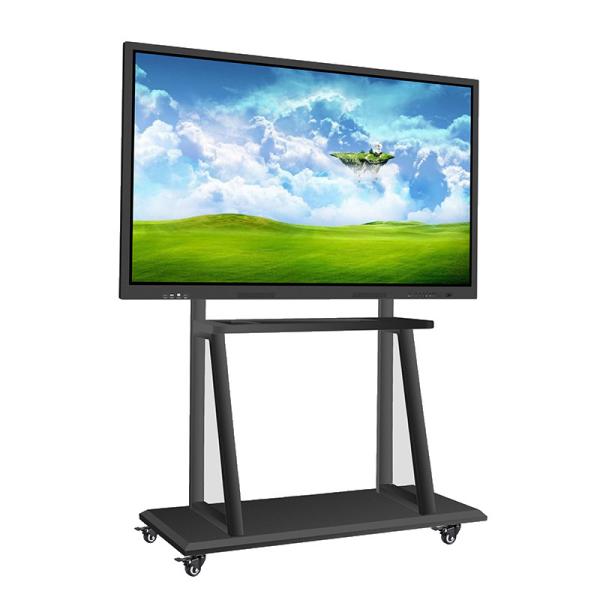

NEW 4K UHD 86" Dual System Conference IR Touch Kiosk Support Wireless Mirroring
Product features:
1. Equipped with front buttons, which is convenient for quick switch on and off, one-key energy saving and other operations;
2. If the machine is under normal use, the device can automatically recognize and switch to the corresponding VGA/HDMI signal source channel, and can return to the previous channel after disconnection;
3. Android hotkey function: floating shortcut keys can be placed anywhere on the Android desktop;
4. Support multi-point touch screen, when paired with a computer motherboard as a dual-system all-in-one machine, the touch frame can be seamlessly switched between dual systems (windows/Android); in the Android interface, it can detect the on-off status of the PC motherboard for remote control/touch Control computer switch machine;
2.1 Screen parameters
| 86inch parameters | |
| Size | 86” |
| Dimension | 1953.3*1164.5*91.7mm |
| Display area | 1895.04mm(H)×1065.96mm(V) |
| Pixel pitch | 0.4935 mm x 0.4935 mm |
| Resolution | 3840(H)×2160(V)(UHD) |
| Brightness | 350cd/㎡ |
| Contrast ratio | 1100:1(Typ.) |
| Viewing angle | 178°,178° |
| Response time | 10ms |
| Color depth | 10 bit/1.07 Billion |
| Backlight | DLED |
| Life span | ³50000 hrs |
| Speaker | 2*8Ω10W |
| Power consumption | ≦380W |
| Power supply | 100V-240VAC,50/60Hz |
| Mainboard parameters | |
| Solution | MSD648 |
| CPU | ARMCortex-A53 quad-core |
| RAM | 2GB |
| ROM | 16 GB |
| System | Android Version 6.0.0 |
| Interfaces | WiFi*3,HDMI in*2,AV in*1,AV out*1,YPBPR*1,VGA*1,PC audio*1,USB*4(front*2), SD card slot*1,RS232*1,RJ45*1,Earphone audio out*1,Coaxial audio*1,touch USB*1 |
| Audio | Audio format support: WMA, MP3, M4A (Definitely unsupported formats: SONY ATRAC3, Dobly HD) |
| Video | RM, MPEG2, MPEG4, H.265, RMVB, MOV, MJPEG, VC1, FLV (Definitely unsupported formats are: MSVS/CRAM, MP42, GMC, IV32, RLE, CVID, RV20, H.264@3840*2160 ) |
| Picture | Support JPEG, BMP, PNG and other image format and support rotation/slide show/picture zoom function |
| CPU | Intel I3/I5/I7 optional |
| Mainboard | Intel H81/H110/HM86/A77 optional |
| RAM | 4GB/8GB optional |
| Hard disk | 500GB/1TB HHD/128GB SSD optional |
| WiFi | Support 2.4G |
| OS | Windows7/ Windows10 |
| Working temperature | 0~50℃ |
| Touch embedding method | Built-in integrated, not external |
| Writing mode | Fingers, touch pens or other non-transparent objects with a diameter of not less than 5mm |
| Touch point | ≥10 points |
| Touch accuracy | The middle area is less than 1mm and the edge is less than 3mm |
| Responding speed | ＜10ms |
| Touch resolution | 32768*32768 |
| Touch times | Unlimited number of theoretical times |
| Transmission speed | 480Mbps |
| Scan frequency | ＞100Hz/S |
| Interface type | Type A USB male +UATR |
| Driver | System automatic identification, no drive |
| OS | Support windows,Android,Mac OS,Linux |
| Working voltage | 4.75V~5.25V |
| Working current | ≤300mA |
| Operating temperature | -10℃~50℃ |
Optional accessories:
Dimension:
|
