| Categories | Sharp TFT LCD Display |
|---|---|
| Brand Name: | SHARP |
| Model Number: | LQ104V1DG72 |
| Certification: | ISO9001 |
| Place of Origin: | JAPAN |
| MOQ: | 1PCS |
| Payment Terms: | TT/PAYPAL/WESTERN UNION/ESCROW |
| Supply Ability: | 200PCS |
| Delivery Time: | 1-2 DAYS |
| Packaging Details: | STANDARD PACKING |

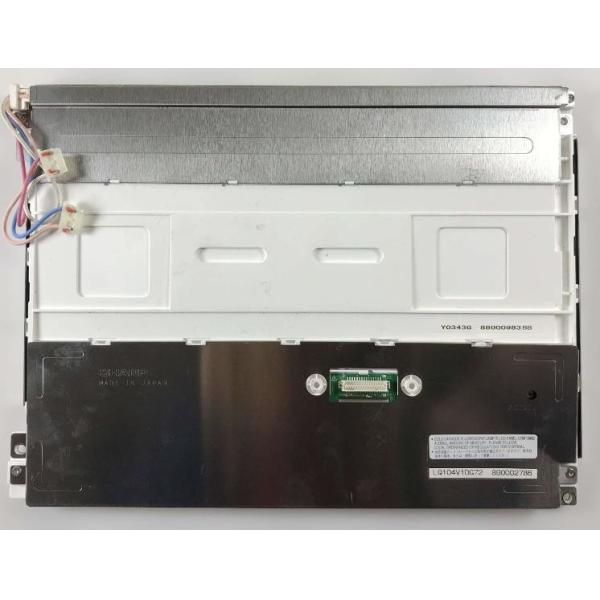

| Panel Model: | LQ104V1DG72 |
| Panel Size: | 10.4" |
| Panel Brand: | Sharp |
| Brightness: | 500cd/m² |
| Resolution: | 640(RGB)×480, VGA, 76PPI |
| Panel Type: | a-Si TFT-LCD , LCM |
| Lamp Type: | 2 pcs CCFL , Without Driver |
| Signal Interface: | Parallel RGB (1 ch, 6-bit) , 31 pins Connector |
| Company Info. |
| Sapientia Display Co.,LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |
LQ104 Series LQ104V1DG74 LQ104V1DG72 LQ104V1DG71 LQ104V1DG62
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| LQ104V1DG72 | a-Si TFT-LCD , LCM | - |
| Screen Size : | 10.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.110×0.330 mm | 0.330×0.330 mm [76PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 211.2×158.4 mm | - | - | - | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 500 cd/m² (Typ.) | TN, Normally White, Transmissive | 300:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| - | - | - | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| - | 262K (6-bit) | - |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top and Bottom) | - | 2 pcs | Straight | - | |
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade
LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you
6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of
payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will
get reply within 24 hours.
|
