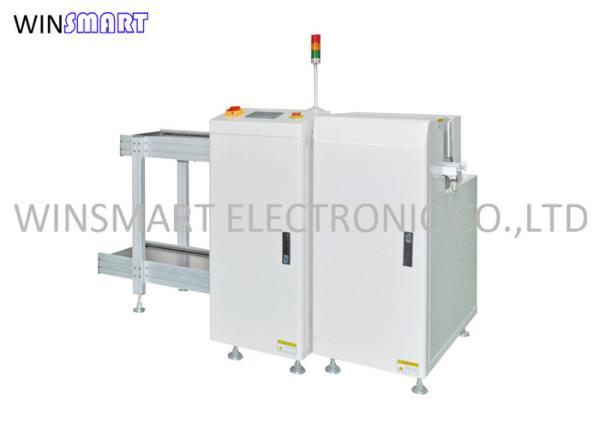

Fully Automatic PCB Vacuum Loader Bare Board Loader Suction Loader
Product Description
PLC control system, working is stable and reliable
Touch screen panel, operation is easy
The pneumatic clamps of top and bottom three points for magazine alignment
Effective thrust design can ensure PCB is unbroken
Flexible suction cup design, its position is adjustable
Machine always fault monitoring
SMEMA compatible
Specifications:
| Model No | SMTSL-250 | SMTSL-330 | SMTSL-390 | SMTSL-460 |
| PCB Size(mm) | (50x50)-(350x250) | (50x50)-(455x330) | (50x50)-(530x390) | (50x50)-(530x460) |
| Machine Size(mm) | 1900x850x1300 | 2250x1050x1300 | 2600x1250x1300 | 2600x1480x1300 |
| Magazine Size(mm) | 355x320x560mm | 460x400x563 | 535x460x570 | 535x530x570 |
| Weight(kg) | 220 | 250 | 280 | 320 |
Technical Parameters:
| Function | PCB Loading Time | Magazine Change Time | Power Supply | Air Pressure |
| It is used for line source, suction pcb is optional for blank PCB, loading PCB function is optional for nonblank PCB | Approx 6 seconds | Approx 30 seconds | 100-230V, 1PH, Max 300VA | 4-6Bar |
| Transport Height | Transportation Direction | PCB Thickness | Magazine Number | Step Pitch Select |
| 900±20mm(or customized) | L to R or R to L | Min 0.6mm | Up: 1; Down: 2 | 10mm, 20mm, 30mm, 40mm |
PCB Transmission:
|
220V PCB Handling Machine 90 Degree With SMEMA Compatible
300VA PCB Loader Unloader HMI Control Panel PCB Turn Conveyor
Customized Smt Handling Equipment PCB Inspection Conveyor Variable Speed
220V 110V PCB Loader Unloader PCB Flipper Machine PLC Control
Automatic PCB Magazine Unloader , PCB Handling Equipment For AOI
Winsmart PCB Loader Unloader 0.6mm PCB Thickness Adjustable Suction Nozzle
SMT PCB Loader Unloader PCB Destacker Machine SMEMA Compatible
CE SMT Cooling Conveyor PCB Loader Machine For SMT Production Line
Automatic PCB Magazine Loader , LED Touch Screen SMT Magazine Loader
SMT PCB Cleaning Machine Sticky Roller With ESD Anti Static Device
