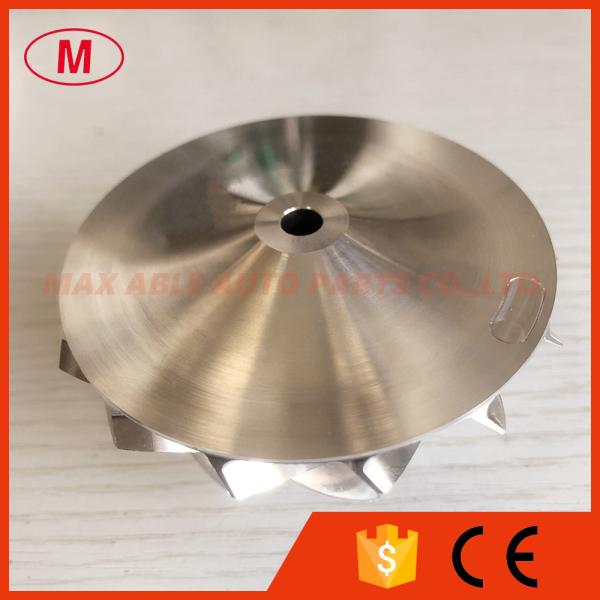

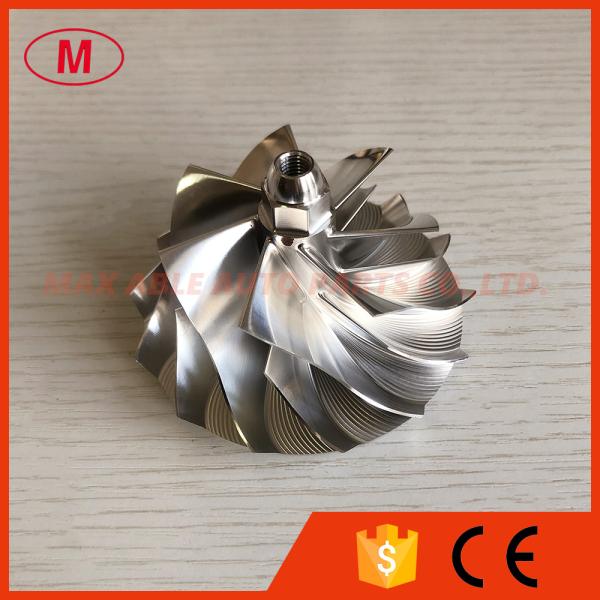

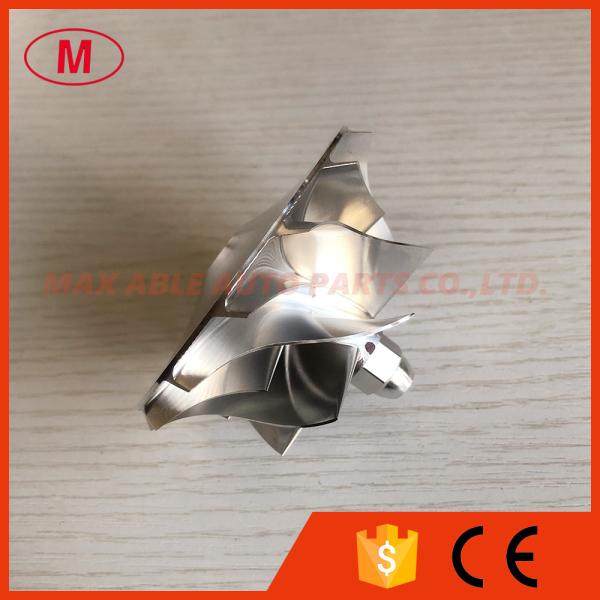

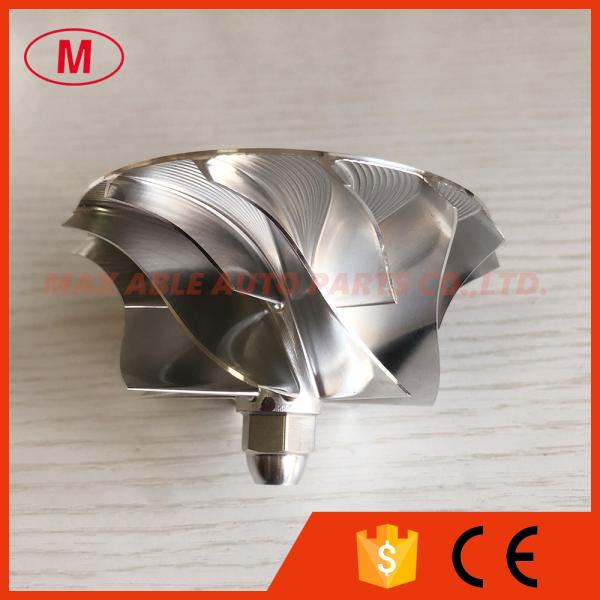

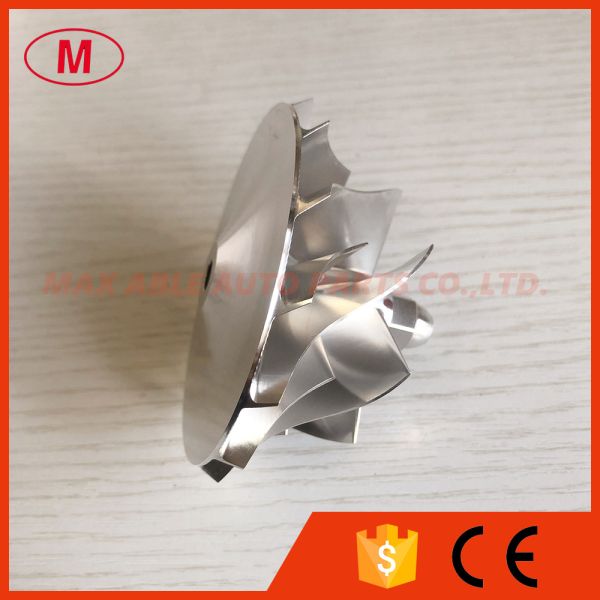

T04E 56.48/74.99mm 442476-0014 7+7 blades high performance turbo milling/aluminum 2618/Billet compressor wheel

1. MODEL:T04E FORWARD

2.T04E 56.48/74.99mm 442476-0014 7+7 blades high performance turbo milling/aluminum 2618/billet compressor wheel for 452092-0001/465225-0009/465355-0003/465629-0001/465633-0001/465637-0001/465653-0001/465780-0001/465907-0001/466229-0001/466290-0003

3.Size:

Nose diameter:15.29mm

inducer:56.48mm

Exduder:74.99mm

Tapered tip exducer:80.30mm

Tip height:5.60mm

Superback:4.96mm

Overall height:51.00mm

bore size :6.35mm

bore type:Threaded 1/4-28G-LHT

Trailing Angle:45

Cutback:0.0

SP Height angle:-5.80

Blades height:31.70mm

Splitter height:18.00mm

Tapered tip Angle:30 degree

7+7 blades

Forward rotation

Fit for OE compressor housing

Application:

452092-0001

465225-0009

465355-0003

465629-0001

465633-0001

465637-0001

465653-0001

465780-0001

465907-0001

466229-0001

466290-0003

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

The more models we also have.

We are specialized in Bosch ,Delphi,Denso ,Simens genuine and brand new  nozzle ,injector ,plunger ,control valve ,head rotors and we also specialized in made in China nozzle ,plunger ,head rotor ,injectors diesel parts and turbocharger and turbocharger spare parts.

We have factory to produce the turbocharger and turbocharger parts.

High quality and competive price can satisfy with your requirement.
