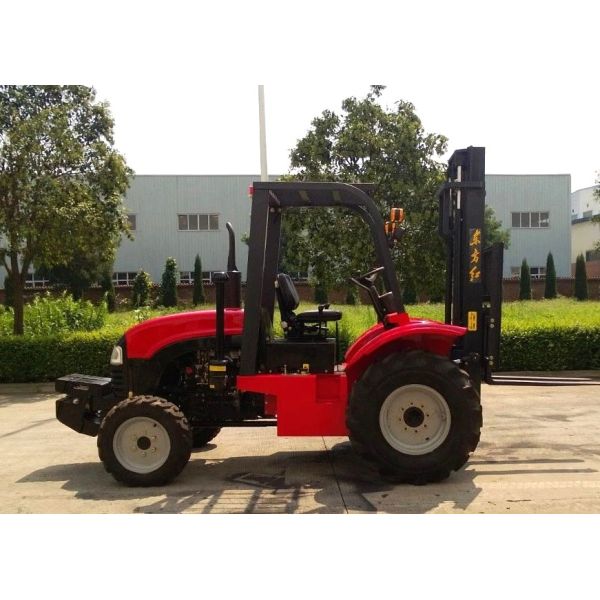

YTO 29.4kw 1.5ton 4x4 Logistics Machinery With C490BT Engine

Categories Logistics Machinery
Brand Name: YTO
Model Number: TC4015
Place of Origin: China
Condition: new
Load capacity: 1.5ton
Min. lifting height: 2300mm
Load center: 500mm
Fork length: 920mm
Wheel base: 1968mm
Rated power: 29.4/2400kw
Fork width: 100mm
Engine model: C490BT
Overall dimension: 4410* 1665* 2300mm
After-sales Service Provided: Field installation, commissioning and training
Warranty: 1 year
Certification: ISO CE
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

YTO 29.4kw 1.5ton 4x4 Logistics Machinery With C490BT Engine

YTO 1.5ton 4x4 Rough Terrain Clark Forklift Truck TC4015 All Terrain Forklift

YTO is a manufacture factory of XDEM forklift truck.Since 1955, YTO has ecolced into a leading agricultural and construction machinery manufacturer in China, serving clients around the world. with decades spent expanding our product lines.YTO products have the advantages of reliable performance, great durablity, and operator comfort.


1. relying on the tractor chassis technology, with superior off-road performance.
2
. through the two drive, four-wheel drive and differential lock control switch, can meet a variety of road conditions.
3
. the choice of OTR tires, more suitable for off-road environments.
4
. with a traction device can achieve traction, transport operations.
5
. the choice of heightening doors, loading and unloading, stacking up to 6 meters working height.
6
. a variety of optional attachments, you can achieve a variety of bales, sugar cane, logs, Salix and potatoes, fruit and other pick-up, field handling and loading and unloading.

Technical Data for TC4015 Rught Terrain Forklift
Speciality parameterModelUnitTC4105
Power typeDiesel
Rated capacitykg1500
Load centerdmm500
Lift heighth2mm3300
Mast tilt angle (forward/backward)α/βDeg10/12
Wheel-baseL4mm1968
Tread(front/rear)b4/b5mm1350/1330
Performance parameterTravel brakeMechanical-Foot pedal
Parking brakeMechanical-Hand level
Lift speed(with/without load)mm/s420/450
Lower speed (with/without load)mm/s(with load)<380 ,(without load)>330
Travel speed (with/without load)km/h23/25
Max. gradeability (with load)%20

Power, transmission and others
EngineModelC490BT
ManufacturerXinchang
Rated powerkw29.4/2400
Max. rotationNm/rpm146/1650
BatteryVoltageV12
CapacityAh100
GearboxTransmission typeMechanical
Gears,speed (front/rear)front 8 rear 8
TyretypeTubeless Tires
ModelFront12.5/80-18TL-12PR
Rear5.70-12TL-6PR
OthersSelf.weightkg2980
ForkThickness×Width×Lengthc×b×amm920*100*35

Overall dimensions
Overall length(without forks)L2mm4410/3490
Overall widthb1mm1665
Lower height(mast)h3mm2300
Overhead guardh7mm2245
Min. turning radiusWamm4050

Min. under ground clearance
Under mastm1mm250
Center of wheel-basem2mm250
