W75 Polished Grinding Tungsten Copper Alloy Spot Welding

Categories Tungsten Copper Alloy
Brand Name: JINXING
Model Number: Copper Tungsten / WCu alloy
Certification: ISO 9001
Place of Origin: China
MOQ: 5KGS
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000kgs/M
Delivery Time: 10~25 work days
Packaging Details: Plywood Case
Material: Tungsten Copper
Surface: Polished and Grinding
Content: W75, W85, W80, W55, W65, W90
Dimensions: Customized
Density: 12.2~17g/cm3
Application: Resistance Welding , Spot Welding
Type: RWMA Class 10,Class 11, Class 12
Grade: 1W3, 3W3 , 5W3, 10W3 , 30W3 ,3W53,10W53
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

W75 Polished Grinding Tungsten Copper Alloy Spot Welding

Tungsten Alloy Plate Copper Tungsten Sheet/Tungsten Copper Sheet CuW 25/75 Sheet


Copper tungsten (CuW, WCu) has been recognized as a highly conductive and ablation resistant composite material which is extensively used as copper tungsten or tungsten copper rods contacts in high voltage applications, tungsten copper heat sinks and electronic packaging material in thermal applications, and electrode in resistance welding and EDM applications.

Copper tungsten combines properties of both metals, hence it’s resistant to high temperatures, shows high thermal and electrical conductivity and is easy to machine.

Tungsten Copper Sheet Features
1. The composition of tungsten and copper are well-proportioned and accurate percentage;
2. Tungsten copper plates are precisely machined with high thermo stability, high arc resistance and high strength;
3. Tungsten copper plate has high electrical conductivity and thermal conductivity;
4. It owns both excellent properties of tungsten's low expansion and copper's high heat conductivity;
5. Tungsten copper plates comply with China GH 8320-87 and SJ-20848-2002UQB standard.

Specification: Tungsten Copper Sheet

Itemw70cu30 w80cu20 w90cu10 WCu tungsten copper alloy sheet and plate
GradeW60Cu40,W65Cu35,W70Cu30,W75Cu25,W80Cu20,W85Cu15,W90Cu10
Shapesheet, plate, disc, square, round, triangle
Density11.85g/cm3-16.75g/cm3
MOQ1 piece
Surfacepolished, rolling, cleaning, grinding
Dimension Range

Thickness:0.5-100mm; Width: 10-300mm; Length: 10-500mm

as request, All parts will be machined as customer's request or drawing.

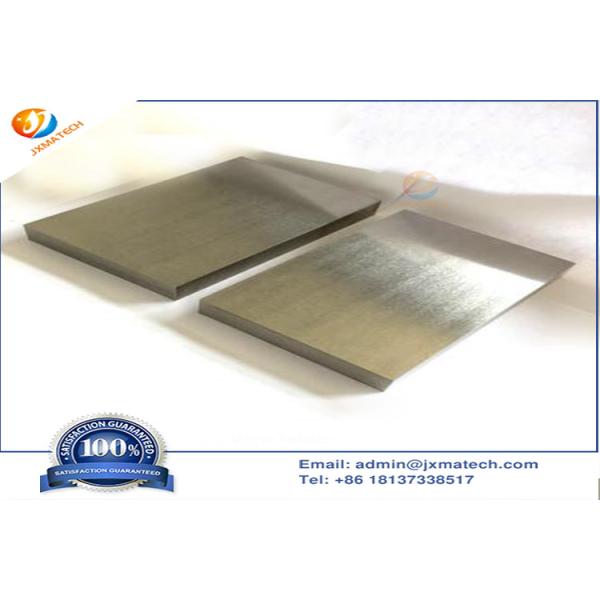

Tungsten Copper Sheet picture:
