| Categories | Turnkey PCB Assembly |
|---|---|
| Brand Name: | FASTPCBA |
| Model Number: | SMT PCBA Assembly Services |
| Certification: | ISO13485, IATF16949, ISO9001 |
| Place of Origin: | China |
| MOQ: | 1PCS |
| Price: | USD 0.1-3/ pcs |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000pcs/month |
| Packaging Details: | 1.Inner: PCB: Vacuum Packing PCBA: ESD Packing 2.Outer: Standard export carton 3.Customized package. |
| Layer Count: | 1-48 |
| Min line/space: | 0.075/0.075mm |
| Silkscreen: | Min size 0.006″(0.15mm) |
| Min solder mask clearanace: | 0.003”(0.07mm) |
| PCBA Testing: | X-ray,AOI Test,Functional test |
| Tolerance of pcb: | ±5% |
| Company Info. |
| FASTPCBA Co., Ltd. |
| View Contact Details |
| Product List |
PCB board file with parts list provided by customers
* PCB board made, circuit board parts purchased by us

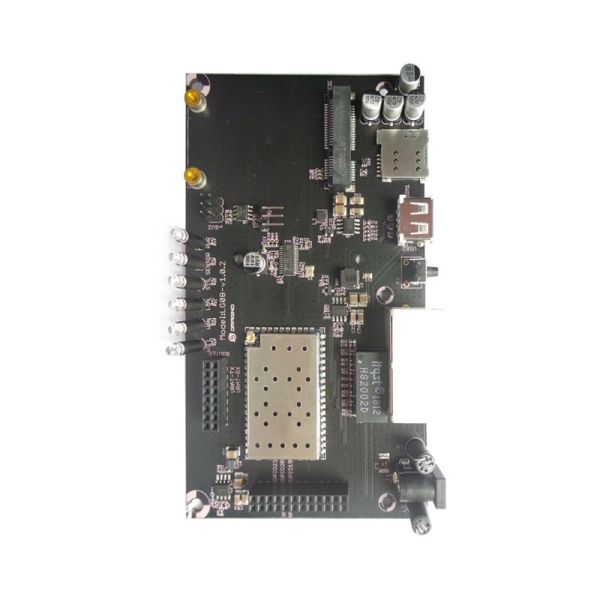

* PCB board with parts assembled
* Electronic testing circuit board or PCBA
* Fast delivery, anti-static package
* RoHS Directive-compliant, lead-free
* One stop service for PCB layout, PCB manufacture, components purchasing, PCB assembly, test, packing and PCB delivery
| layer | 1 to 48 layer |
| Material | FR-1/ FR-2/ FR-3/ FR4 /FR-5 /FR-6 /G-10 /CEM-1/ CEM-2 /CEM-3 /CEM-4 /CEM-5 /AIN /SIC |
| Board Shape | Rectangular, Round, Slot, Cutout, Complex, Irregular |
| Board Type | Rigid, Flexible, Rigid-flexible |
| Board Cutting | Shear, V-score, Tab-routed |
| Board Thickness | 0.4-4.0mm, Flex 0.01-0.25'' |
| Copper Weight | 0.5OZ, 1OZ, 2OZ, 3OZ, 4OZ |
| Solder Mask | Double-sided green LPI, Also support red, white, yellow, blue, black |
| Silk Screen | Double-sided, or single-sided in white, yellow, black, or negative |
| Silk Screen Min Line Width | 0.006'', 0.15mm |
| Max Board Dimensions | 20inch*20inch, or 500mm*500mm |
| Min Drill Hole Diameter | 0.01'', 0.25mm, or 10 mils |
| Surface Finishing | HASL, Nickel, Immersion Au, Immersion Ag,, OSP etc |
| Board Thickness Tolerance | ± 10% |
| Copper Weight Tolerance | ± 0.25 OZ |
| Minimal Slot Width | 0.12'', 3.0mm, or 120mils |
| V-score Depth | 20-25% of board thickness |
| Plated Through Holes | Yes |
| Sink Holes | Yes |
| Design File Format | Gerber RS-274X, 274D, Eagle and Auto CAD'S DXF, DWG |
As the experienced quick turn pcb prototype factory china, FASTPCBA provide one-stop pcba assembly service for customers of smart home pcba, Iot pcba, aerospace pcba, military pcba, communication pcba, industrial pcba, automotive pcba, medical pcba etc over 20 years.
With independent pcb factory in jiangmen guangdong province and pcb assembly factory in shenzhen china, FASTPCBA can provide the most competitive pcb cost for middle and high-end customers. The whole pcb fabrication and assembly process is strictly comply with ISO & IATF certificates, safety,reliable and high yeild pcba obtained.
FASTPCBA is the sole pcba assembly processing factory, who is highly praised by 2000 customers over 50 countries. The road to high quality is hard and long, FASTPCBA will try our best to better serve for customers.
|
