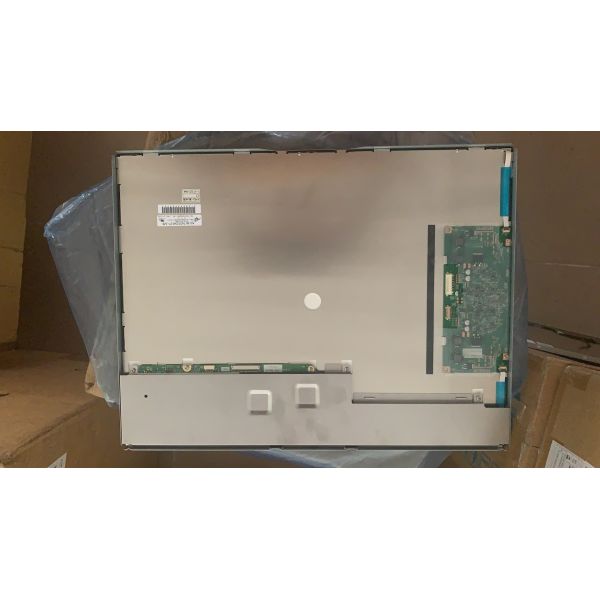

NL160120AC27-32 NLT 21.3INCH 900CD/M2 LCM 1600×1200 1600×1200RGB WLED LVDS Operating Temperature: 0 ~ 60 °C INDUSTRIAL L

Categories	NEC TFT Display
Brand Name:	NEC
Model Number:	NL160120AC27-32
Certification:	ISO9001
Place of Origin:	JAPAN
MOQ:	1PCS
Payment Terms:	TT/PAYPAL/WESTERNUNION/ESCROW
Supply Ability:	500PCS
Delivery Time:	1-2day
Packaging Details:	STANDARD PACKING
MODEL NUMBER:	NL160120AC27-32
BRAND:	NEC
SIZE:	21.3INCH
RESOLUTION:	1600×1200RGB
BRIGHTNESS:	900CD/M2
Lamp Type:	WLED
TEMPERATURE RANGE:	Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -20 ~ 60 °C

Contact Now

Add to Cart

Company Info.

Sapientia Display Co.,LIMITED

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

NEC NL160120AC27-32 Application Details

Basic Information :	Luminance	900 cd/m² (Typ.)	Contrast Ratio	1400 : 1 (Typ.) (Transmissive)
	Good View at	Symmetry	Response Speed	20/20 (Typ.)(Tr/Td) (ms)
	Viewing Angle	88/88/88/88 (Typ.)(CR≥10)	Operating Mode	UA-SFT, Normally Black, Transmissive
Color Performance :	Chromaticity	Wx:0.299; Wy:0.315	Support Color	16.7M (8-bit)
Color Performance :	Color Temperature	7502K	White Uniformity	1.25 (Max.)(9 points)
1931 Color Gamut :	NTSC Ratio	72%	sRGB	98% coverage
	Adobe RGB	75% coverage	DCI-P3	75% coverage
	Rec.2020	54% coverage	Remarks	sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
Dispaly Performance :	Outdoor Visibility	Sunlight Readable	Transmissivity	-

Pixel Features :	Number of Pixel	1600(RGB)×1200 [UXGA]	Arrangement	RGB Vertical Stripe
Pixel Features :	Dot Pitch(W×H)	0.090×0.270 mm	Pixel Pitch(W×H)	0.270×0.270 mm [94PPI]
Physical Size :	Active Viewing	432(W)×324(H) mm	Overall Dim.	457(W)×350(H) mm
Physical Size :	Bezel Opening	438.2(W)×330.0(H) mm	Overall Depth	21.5/23.0 (Typ./Max.) mm
Outline Features :	Form Shape	Flat Rectangle	Orientation	Landscape type
Outline Features :	Aspect Ratio(W:H)	4:3	Shape Style
Fixation :	Side mounting holes (4-M3) on left, right bezel
Other Detail :	Mass	2.80/2.98Kgs (Typ./Max.)	Surface	Antiglare, Hard coating (2H)
