| Categories | Double Layer Roll Forming Machine |
|---|---|
| Brand Name: | Sussman |
| Model Number: | SS-DL |
| Certification: | CCC, SGS, ISO9001, CE |
| Place of Origin: | Wuxi Jiangsu China |
| MOQ: | 1 set |
| Price: | negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10 sets per month |
| Delivery Time: | 55 - 65 days |
| Packaging Details: | Standard packing |
| Material: | Galvanized steel and colorcoated steel coil |
| Forming speed: | 12-15m/min |
| Roller station: | 16 - 18 stations |
| Main motor power: | 7.5Kw |
| Transmission: | Single chain |
| Power Supply: | 220V 60HZ 3phase |
| Material thickness: | 0.4-0.8mm |
| Hydraulic cutting power: | 4kw |
| Company Info. |
| Sussman Machinery(Wuxi) Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Roll Forming Machine for Wall Panel and Tile Roof Panel with PLC Control
Technical Data
| Number | Items | UnitType | RF-DL |
| 1 | Steel Thickness | mm | 0.25-0.8mm, coil width 1220 and 1000mm |
| 2 | Forming Speed | m/min | 8-12 |
| 3 | Roller stands | stand | 18 stands bottom layer; 14 stands top layer |
| 4 | Roller Material | mm | 45# steel, coated with chrome quenching |
| Shaft material and diameter | mm | Ф76 45# steel, coated with chrome | |
| 5 | Main Motor Power | Kw | 7.5 |
| 6 | Hydraulic cutting Power | Kw | 4 |
| 7 | Hydraulic pressure | Mpa | 12 |
| 8 | Power Supply | 220V, 60HZ,3 phase | |
| 9 | Tolerance | mm | 1.5 |
| 10 | Material of cutting | Cr12mov HRC60-62 | |
| 11 | Control system | PLC with touch screen | |
| 12 | Machine net weight | T | 8 |
Main Components
| Machine Component | Quantity |
| 5 ton passive decoiler | 1Set |
| Main roll forming machine | 1Set |
| Hydraulic station | 1Set |
| Cutting device | 1Set |
| Finished products tabel- | 2Set |
| PLC control system | 1Set |
| Spare parts | 1Set |
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable
Applications
Wall Panel, Roof Panel, Tile Roof Panel
Working Flow
Decoiler ---- Feeding --- Roll Forming ---- Cutting ---- Run out table
Profiles of Wall and Roof Panel

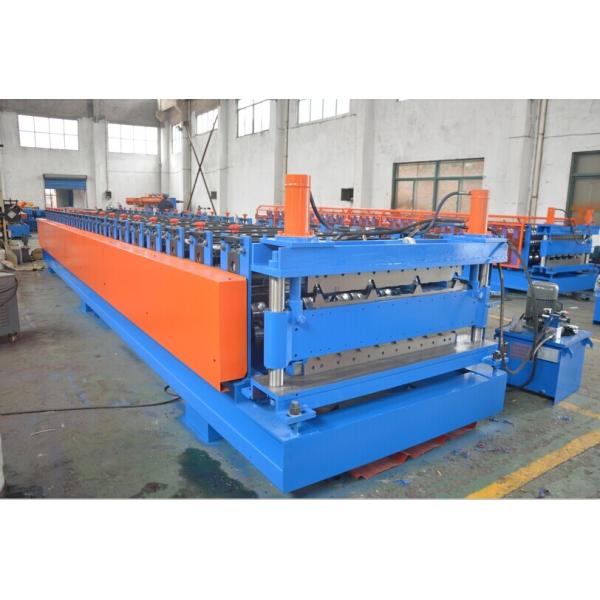

Machine photo
|
