| Categories | Mechanical Shaker Table |
|---|---|
| Brand Name: | Labtone |
| Model Number: | RV3000 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiable |
| Supply Ability: | 15 Sets / Month |
| Delivery Time: | 30-35 Work Days |
| Packaging Details: | International standard wooden case |
| Frequency: | 5-100 Hz |
| Displacement: | 0-3 mmp-p |
| Acceleration range: | 0-11g(peak) |
| Max. Payload: | 130 kg |
| Table Dimention: | 600 x 500 mm |
| Waveform: | Sine |
| Company Info. |
| Labtone Test Equipment Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

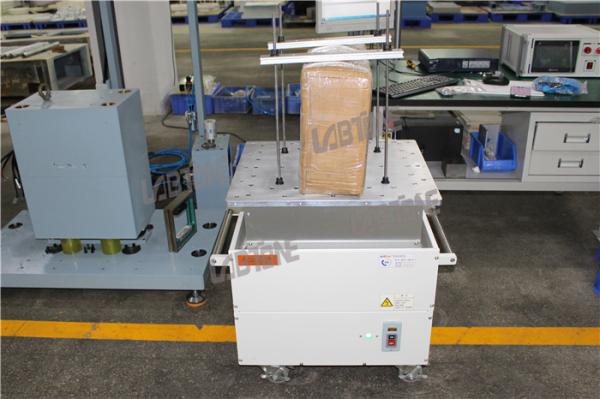

Sine Vibration Testing Vertical Mechanical Shaker Table Vibration Testing Equipment
specifications
Model: RV3000
Frequency(Hz):5—100
Displacement (mmp-p): 0--3(mmp-p)
Acceleration range: 0—11G(peak)
Max. payload(kg): 130
Table size(L×W): 600×500mm
Control interface:RS-232
Test pattern: fixed frequency ,sweep frequency(linear/logarithm),Multistage
random
Wave form: Sine pulse
Vibration direction: Vertical
power supply: AC 220V /50Hz
machine dimension: 765*525*690mm
machine weight: 250kg
