| Categories | Low Bed Semi Trailer |
|---|---|
| Brand Name: | Shandong Fudeng |
| Model Number: | SDFDZH040824 |
| Certification: | CE , CCC |
| Place of Origin: | Shandong China(Mainland) |
| MOQ: | 1 set |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 900 Units Per Month |
| Delivery Time: | 20 - 25 work work days after deposit |
| Packaging Details: | By Bulk Cargo Ship, Ro-ro Ship |
| Axle: | 2 AXLE |
| Landing gear: | JOST |
| King pin: | 2.0'' or 3.5'' |
| Main beam: | 500mm |
| Rim: | 8.0-20 |
| Material: | High Strength Steel Material |
| Application: | Equipment And Bulk Cargo Transportation |
| Advantage: | Customized Design |
| Price: | negotiation |
Description:
1. Well-known brand axles, suspension systems, high performance,
and reliable to use, to ensure the good performance of the vehicle.
2. Frame overall spray primer treatment, paint spraying fine
surface quality of maritime anti-corrosion standards.
Applications:
Apply to transport longer larger parts, miscellaneous pieces of
cargo, large components and equipment.
Competitive Advantage:
1. Frame body Q345B high strength structure steel, automatic
submerged arc welding throughout beams, and other cross-section
main stringers structure for optimum carrying effect.
2. Innovative design, tailored to local transport environment
analysis on the basis of full understanding of, learn from the
advanced design concept, many innovative.
3. Full braking and electrical systems at home and abroad in
accordance with ISO standard, optional ABS system, braking,
lighting is absolutely safe and reliable.
Specification
| Low bed semi-trailer 2axles | |||
| Overall Dimension | Length(mm) | 13000 | |
| Width(mm) | 3000 | ||
| Height(mm) | 2650 | ||
| Tare Weight(kg) | 8100 | ||
| Payload(kg) | 26000 | ||
| Quantity of Axle | 2 | ||
| Wheelbase(mm) | 9150+1230 | ||
| Wheel Track(mm) | -/2160/2160 | ||
| Rear Overhang(mm) | 1670 | ||
| Departure Angle(°) | 16 | ||
| Leaf Spring | -/8/8 | ||
| Tyre | 8.25R20 | ||
| Quantity of Tyre | 8 | ||
| II. STANDARD SPECIFICATION | |||
| NO. | Products | Technical Specification, Brand, etc | |
| 1 | Main Frame | 16Mn steel, Opting for the most advanced digital control plasma cutting technique, welded by automatic Submerged-Arc processes Beam Height: 500mm , Upper Flange thickness: 16mm; Under Flange thickness: 16mm;Ventral Flange thickness: 10mm | |
| 2 | Axle | 13ton | |
| 3 | Pneumatic Braking System | SEALCO brand | |
| 4 | Air Chamber | 2 pcs double type ,2 pcs single type | |
| 5 | Suspension | Mechanical or Air | |
| 6 | Leaf Spring | 10 leaves | |
| 7 | Kingpin | 2" welding type | |
| 8 | Electrical System | 24V | |
| 9 | Wheel Rim | wheel rim 8.0-20 | |
| 10 | Tyre | 8.25-2016PR, 8pcs | |
| 11 | Mud Guard | Reinforce Plastic Mud Guard | |
| 12 | Tool Box | without | |
| 13 | Flexible Side Guardrail | Optional | |

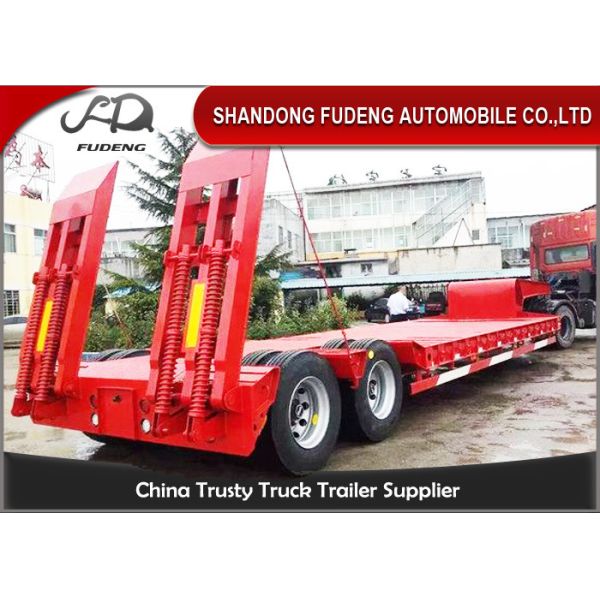

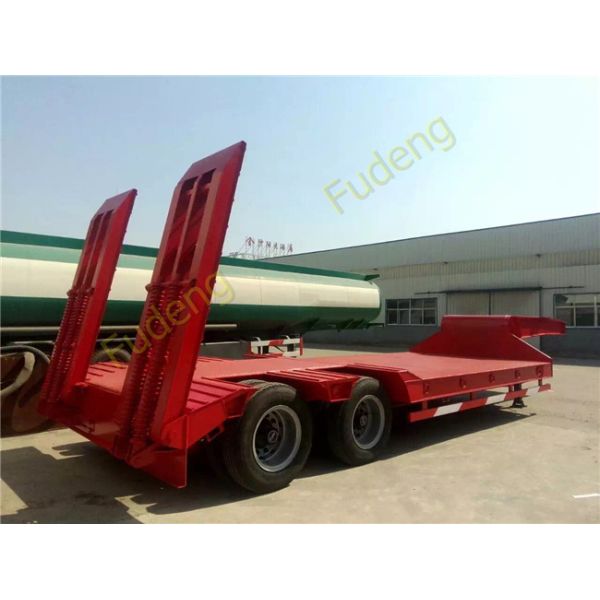

2 axle low bed semi trailer

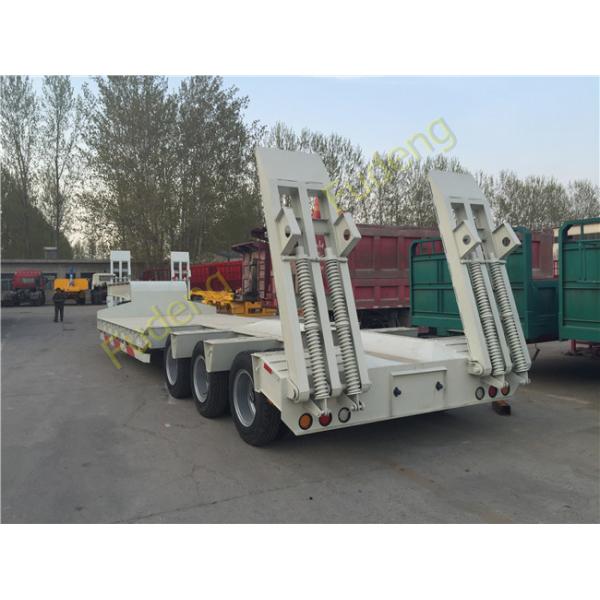

3 axle low bed semi trailer
4 axle low bed semi trailer
if you are interested with our products , pls contact us.
|
