Name: 3 Axles Low Bed Semi Trailer Sale In Africa 50 Ton With Ramp 12 Wheelers
Brand: Fudeng
Price: 1 USD

Home > Travel Trailer >

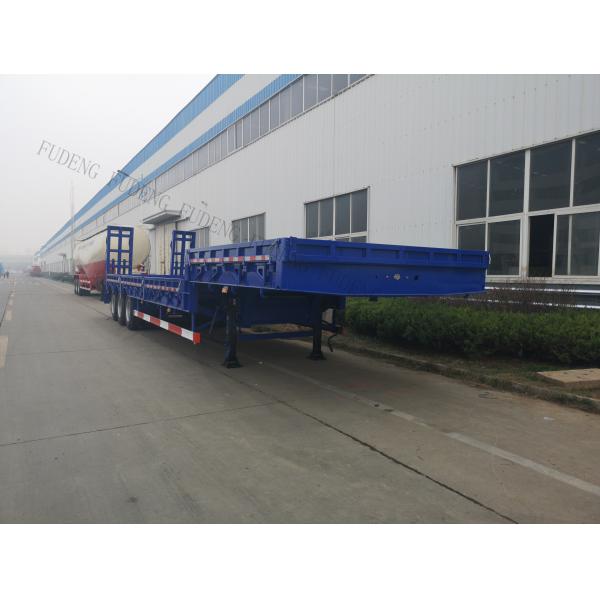

3 Axles Low Bed Semi Trailer Sale In Africa 50 Ton With Ramp 12 Wheelers

Categories	Low Bed Semi Trailer
Brand Name:	Fudeng
Model Number:	SDFD1702 low bed trailer
Certification:	CE, ISO, CCC, SGS, ADR
Place of Origin:	Shandong, China
MOQ:	1 set
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	600 sets per month
Delivery Time:	25-40 days after 30% deposit
Packaging Details:	Paint and wax spraying
Price:	Negotiation
Material:	Carbon Steel
Usage:	Transport heavy machine
Color:	White, yellow, red, green, blue customized
Pattern:	Fudeng logo or as customer's request
Suspension:	Mechanical or air suspension
Capacity:	30-100 ton available
Axle:	2 or 3 or 4
Landing gear:	Standard 28 Ton
Landing Gear:	Jost Brand with two Speed
Axles Brand:	FUWA/BPW/L1/FD

Contact Now

Add to Cart

Company Info.

Shandong Fudeng Automobile Co, Ltd.

View Contact Details

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Low loaders cross into several other trailer categories, with some models offering extendable frames that can be adjusted to allow for oversized machinery to ride on board. Models may also feature beavertail ramps at the rear, with pneumatic or hydraulic rams allowing this to be raised and lowered remotely for added convenience. Flip toe ramps are not out of the question for this type of trailer, while outriggers may be present, improving stability during loading and unloading. And with very heavy payloads destined for this type of trailer, it is crucial that operators are made aware of the features and benefits on offer.

The main beam is designed as special double vertical plate which is more solid than single vertical plate.
The gooseneck is inside and outside reinforced to achieve heavy duty tranportation.
The ladder and trailer body are connected by mechanical spring make it easy operate and high-intensive.
The side beams are I shaped steel beam structures. Checkered floor aims increase friction and prevent cargo from skidding.

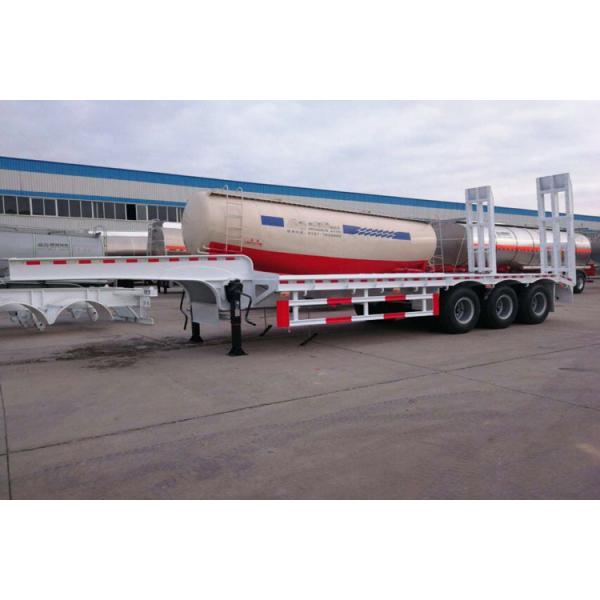

3 Axles Low boy semi trailer with Widen the device trailer for sale

Low bed semi trailer's dimension and configurations as follows:

Specifications
Frame	Welding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material
Frame Beam	Upper and lower plate is20mm,middle is10mm.height is 500 mm
Frame Floor	The Thickness is 3-8 mm flat bed
Axle	3 axles or customized, BPW/FUWA/HUAJING brand
Landing Gear	JOST (D200T)or CHINA BRAND 28T
King Pin	JOST 2.00 or 3.5 inch bolt-in king pin
Suspension	Mechanical suspension/Germany or America type/air suspension
Leaf Spring	90mm(W)13mm(T)10 Layer/90mm(W)16mm(T)10 Layer/ 100mm(W)16mm(T)10 Layer
Pneumatic Braking System	WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.
Rim	8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional
Tire	11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional
ABS	Optional
Accessories	One standard tool box
Voltage	24V
Packing and shipping
Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Shipping Terms	By Bulk Cargo/RORO/ 40 HQ

If you transport heavy duty Equipment we can according to your requirement to design the dimension .

Our low loader is adopted to transport construction machines, lifting vehicles and industrial parts.

Welcome to contact us to get more information.

You transport Heavy Goods and we can addition the widen device for you .

If you are interested in our products please feel free to contact us , We can recommend the best type for you .

Welcome to ask more information and welcome to visit our company !
